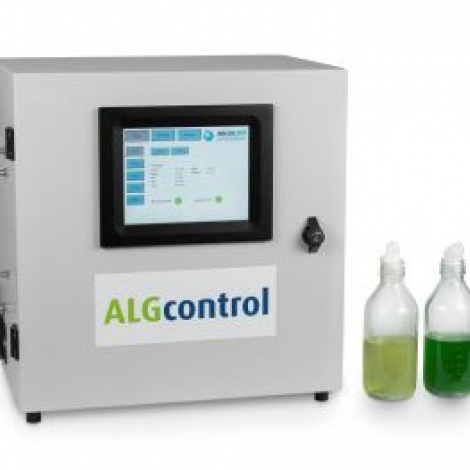

Aqualabo ALGcontrol Fluorescence monitoring of algae classes and toxic algae (0-200 μg/l, 0-400 NTU)

INSTRUMENT SPECIFICATIONS:

- Total chlorophyll: 0-200 μg/l (Chl.-a, green algae + blue-green algae)

- Cyano chlorophyll: 0-200 μg/l (Chl.-a, blue-green algae)

- Precision: 0,2 μg/l

- Turbidity: 0-400 NTU

- 1 programmable pump (for sample or

cleaning)

- 2 programmable valves.

Specifications Communication:

- Integrated PC with Linux-based operating system

- Graphical user interface with interactive touch screen operation

- Full network capability via direct LAN

connection

- All standard communications interfaces are supported CAN-Bus, LAN, Modem and RS232 or RS485

- Protocols: Modbus TCP and Modbus serial, other on request

- Profibus with converter

- 2x output 4 - 20mA

- Available operating system languages:

English, German, French and Spanish, other

on request.

Specifications Options:

- Modem slot for UMTS, ISDN or analog (modem optional)

- Sensors: pH, DO, Turbidity, Redox, temp.

- Inputs: 4-20 mA, 2x digital in, leakage sensor

- PC Software (SQL Database)

Technical Details:

- Power supply 24V DC

- Protection classification: IP 54 (optional IP65)

- Dimensions (HxBxD): 450 x 450 x 260

- Cabinet material: Aluminum

- Sample pressure: 0 bar (max 0.05 bar overpressure)

- Sample temperature: 10 - 35°C

- Sample flow rate: 2 - 10 l/h

- Environmental temperature: 15 - 35°C

- Operating system: Embedded Linux

- Power consumption (average): 45W.

Automatic cleaning:

- User selectable cleaning cycles

- Cleaning solution (sodium hypochlorite solution < 0,05% active) prevents fouling

and unattended usage for several weeks

For specific range please check the attachment below!
