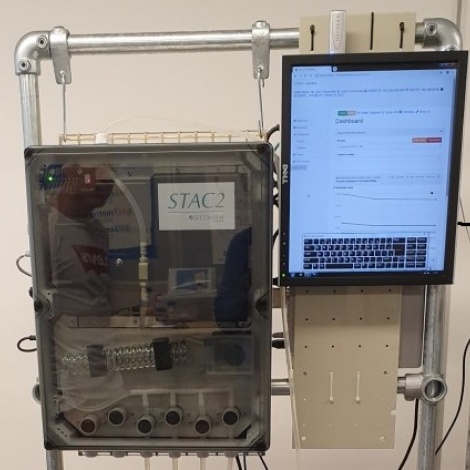

Aqualabo STAC2 UV Online Analyzer for COD BOD TOC TSS NO3 1 way (0,5 - 8750 mg/L)

STAC2 analyser specifications:

Sample streams: 4 Different samples

Dimensions Height: 500 mm Width: 400 mm Depth: 265 mm

Weight: 18 kg

Protection; IP53

Digital output:

1x Ethernet RJ45 port for MODBUS and/or HMI access

1x WIFI connection for HMI access

1x USB port for USB Key recorded data history backup

Flow cells: Interchangeable 2, 5 and 50mm optical path

Cleaning: Automatic, chemical for tubing / Internal case by compressed air

Lamp: Xenon

Blank: Automatic

Data readout: On separate PC / tablet or mobile phone (optional)

Operating temperature; 10°C to 40°C / 50°F to 104°F

Data Storage ;On internal SD Card. An internal security back-uo is performed daily on internal USB drive. Data export on internal USB key.

Mounting: Wall-mounted

Digital input / output: Through MODBUS TCP/IP and RTU

Power; 24VDC +/-0.5VDC 3A or 100 – 240V (Optional) 50-60Hz with External Power

supply

Measuring range:

COD : 2 to 8750 mg/L

BOD : 0.5 to 8750 mg/L

TOC : 1 to 7500 mg/L

TSS : 5 to 2500 mg/L

NO3 : 1 to 1000 mg/L

Turbidity compensation

For specific range please check the attachment below!

Datasheet

Datasheet On Line Analyser STAC2

Manual

User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2_Start guide

User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2_Modbus frame2

User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2

User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2_Modbus frame
