Specification
Code: 4625AA2B1B1
Fork Coupling (T): T1
Flow rate: 2.5 ÷ 50 l/min
MAX Pressure: 20 bar
Connection: A-NET
INTRODUCTION

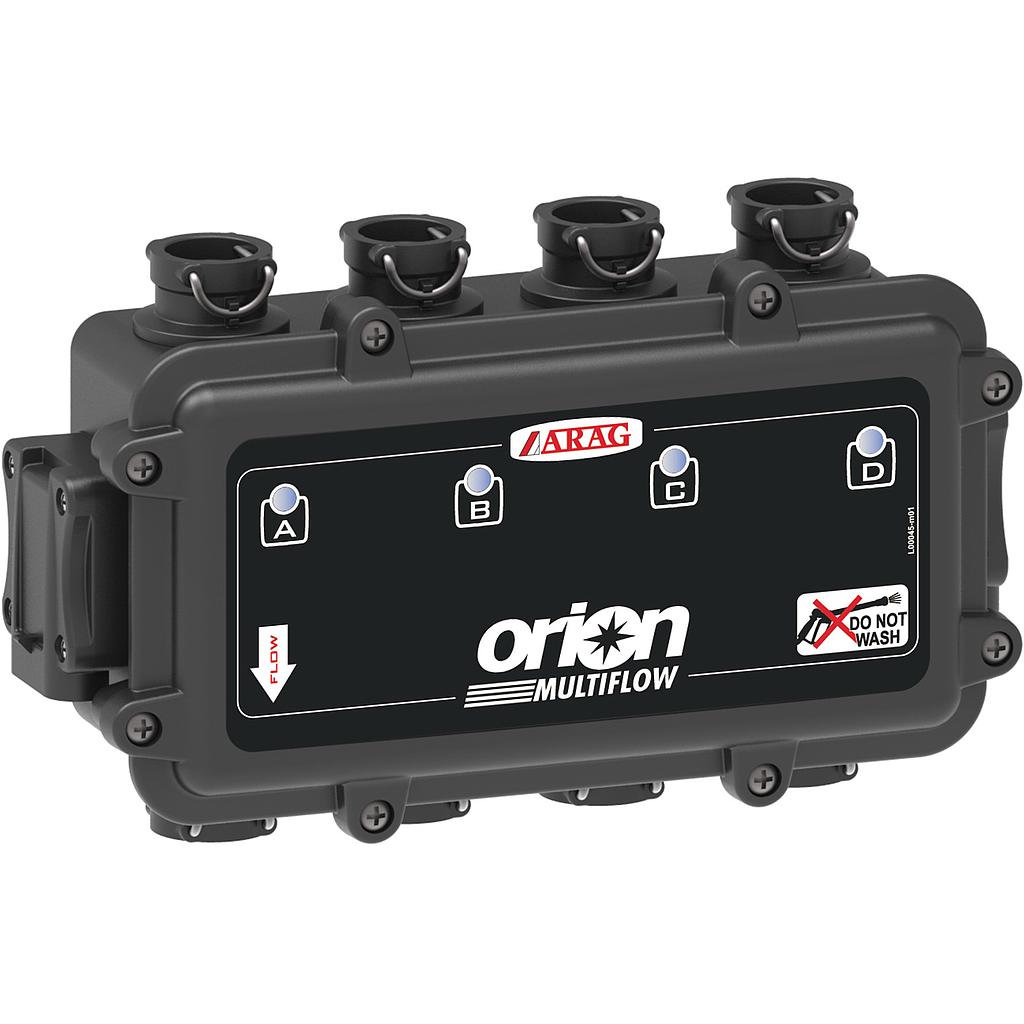

Orion Multiflow Flowmeter
Orion Multiflow is an electro-magnetic flowmeter with 4 channels designed to monitor liquid distribution systems.
The flowmeter is provided with a A-net port that allows its connection to the network with other flowmeters to monitor over 100 lines.
GENERAL FEATURES
Four 0 ÷ 12 VDC pulse outputs with frequency proportional to flowrate
LED for status indication of each single channel.
TECHNICAL FEATURES
BENEFITS
No mechanical moving parts inside the pipe
Performances independent from fluid density and viscosity
Low sensitivity to turbulence
High precision
Low maintenance
