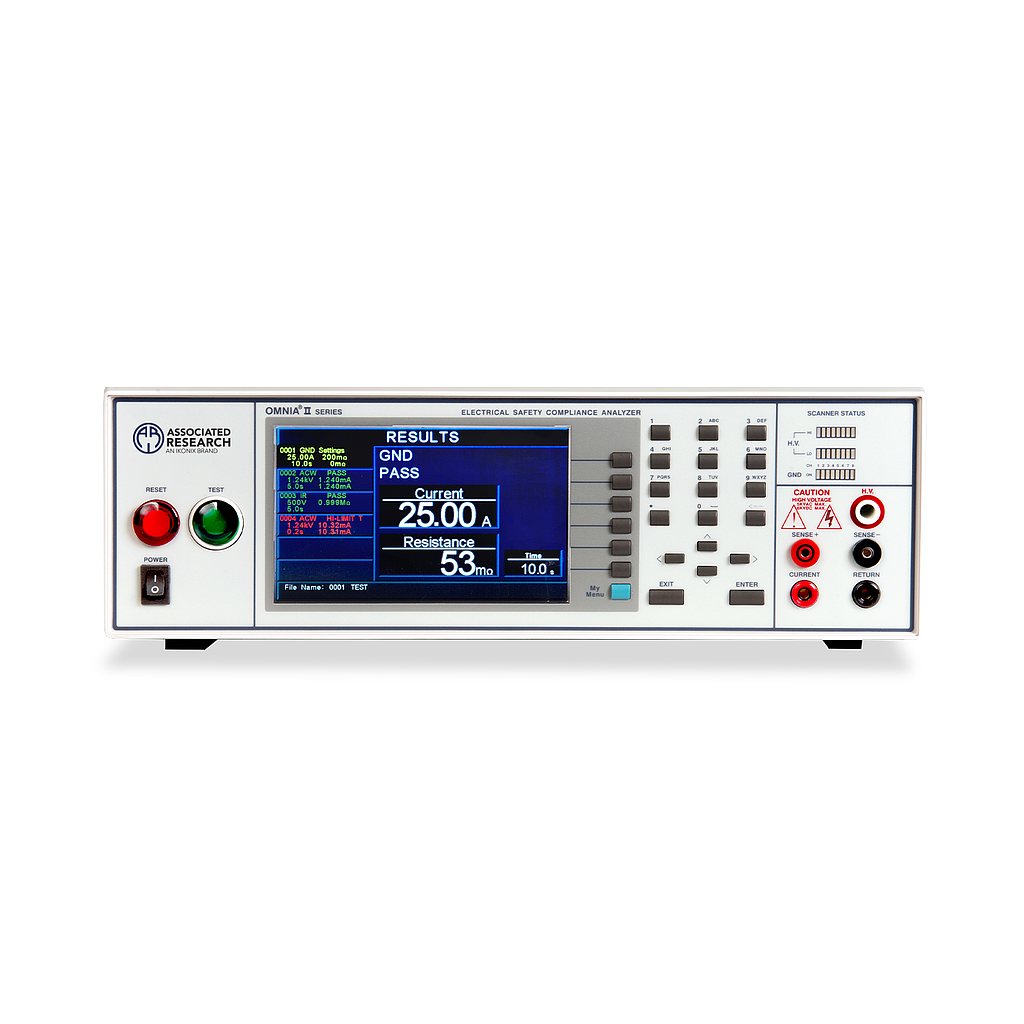

DIELECTRIC WITHSTAND TEST MODE
Output Rating 5 kV @ 50 mAAC
5 kV @ 100 mAAC (Models 825X)
6 kV @ 20 mADC
Voltage Setting Resolution:1 V
Accuracy:± (2% of setting + 5 volts
INSULATION RESISTANCE TEST MODE
Voltage Setting Range: 30 – 1000 VDC
Range:0.05 MΩ – 99.99 MΩ
Resolution:0.01 MΩ
GROUND BOND TEST MODE
Output Voltage
(Open Circuit Limit)
Range: 3.00 – 8.00 VAC
Output Frequency Range: 60 or 50 Hz, User Selectable
CONTINUITY TEST MODE
Output Current DC 0.01 A ± 0.00001 A
Resistance Display Range: 0.00 – 10000 Ω
RUN TEST MODE (Models 82X6 & 82X7 only)
DUT Power Voltage:0 – 277 VAC single phase unbalanced
Current:16 AAC max continuous
Range:0.0 – 277.0 VAC Full Scale
Resolution:0.1 V
Accuracy:± (1.5% of reading +0.2 V), 30.0 – 277.0 VAC
Short Circuit Protection: 23 AAC, Response Time < 3 sec
LEAKAGE CURRENT TEST MODE CONTINUED (Models 82X6 & 82X7 only
Touch Current
Display (rms)
Range 1: 0.0 μA ~ 32.0 μA, frequency DC, 15 Hz – 1 MHz
Range 2: 28.0 μA ~ 130.0 μA, frequency DC, 15 Hz – 1 MHz
Range 3: 120.0 μA ~ 550.0 μA, frequency DC, 15 Hz – 1 MHz
AC POWER SOURCE (82X7 only)
Output Power: 630 VA and 500 W Maximum
Voltage: 0 – 150.0 V / 0 – 277.0 V
Current: 4.20 A maximum for 0 – 150 V range
2.10 A maximum 0 – 277 V range
PLC Remote
Control
Input: Test, Reset, Interlock, Recall File 1 through 3
Output: Pass, Fail, Test-in-Process
Safety Built-in SmartGFI circuit
Memory 10,000 Steps
Interface Standard: USB/RS-232
Optional: Ethernet or GPIB
Security Advanced security system with access levels and username/password
requirements
Dimensions
(W x H x D)
16.93" x 5.24" x 19.69" (430 x 133 x 500 mm)
Weight 8204:82 lbs (37 kg)
8254:92 lbs (42 kg)
8206/8207:83 lbs (38 kg)
8256/8257:103 lbs (47 kg)
