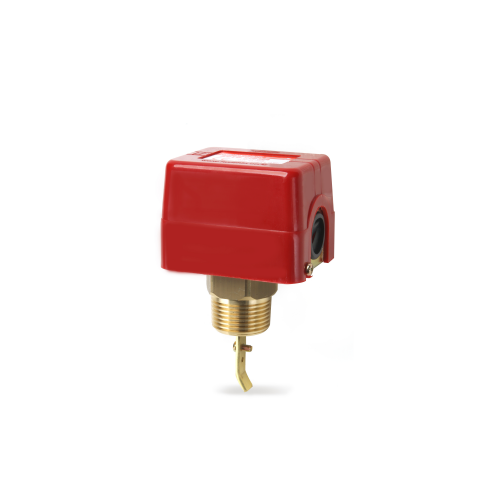

Autosigma HFS-25 Flow Switch (1.0 MPa)

Name: Autosigma HFS-25 Flow Switch (1.0 MPa)
Brand: Autosigma

ModelHFS-25

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Operating pressure: 1.0 MPa (10bar)

Withstanding pressure: 1.75 MPa (17.5bar)

Connection: R1" (PT 1")

Contact point life: 1000 K Cycle

Bellows life: 500K Cycle

Insulation resistance: over 100Ω (DC 500Vm)

Temperature of fluid: Max. 100°C (212°F)

Dimensions (AxBxC): 79x64x93mm

DATASHEET

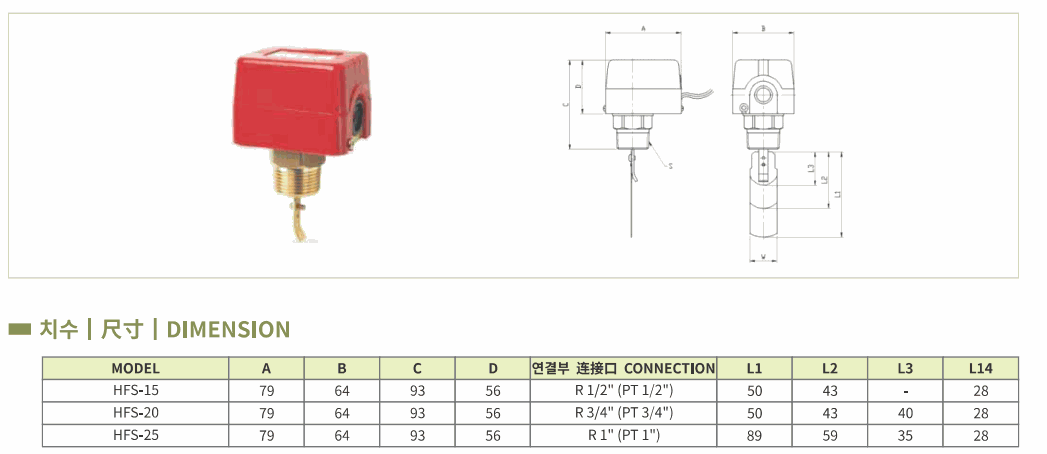

DIMENSIONS
