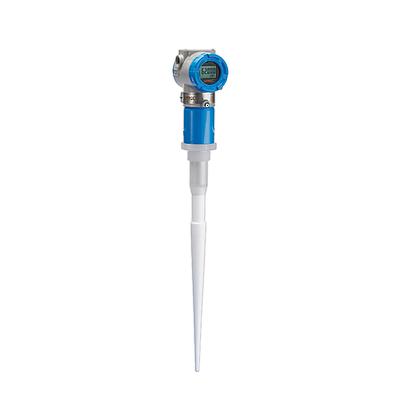

Autrol ALT6200-R Radar Level Transmitter (0.5 - 30m)

Type: Non Contacted type Level Transmitter
Feature: ROD ANT
Range: 0.5 to 30m
Accuracy: ± 10 mm
Process Pressure: Max. 10 bar
Technology: Time Domain Refletometry(TDR) by Guided Wave Radar 6.3 GHz
Point Feature: Wide Beam Angle (24°)
Applicable condition: Swell, Wave, Noise, High Viscosity, Foam

Protocol: 4-20mA, Digital Communication, HART 7
Trim ability: Zero, DAC, FULL
Power supply & Load Requirement: 250 to 360 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -40 to 80℃
