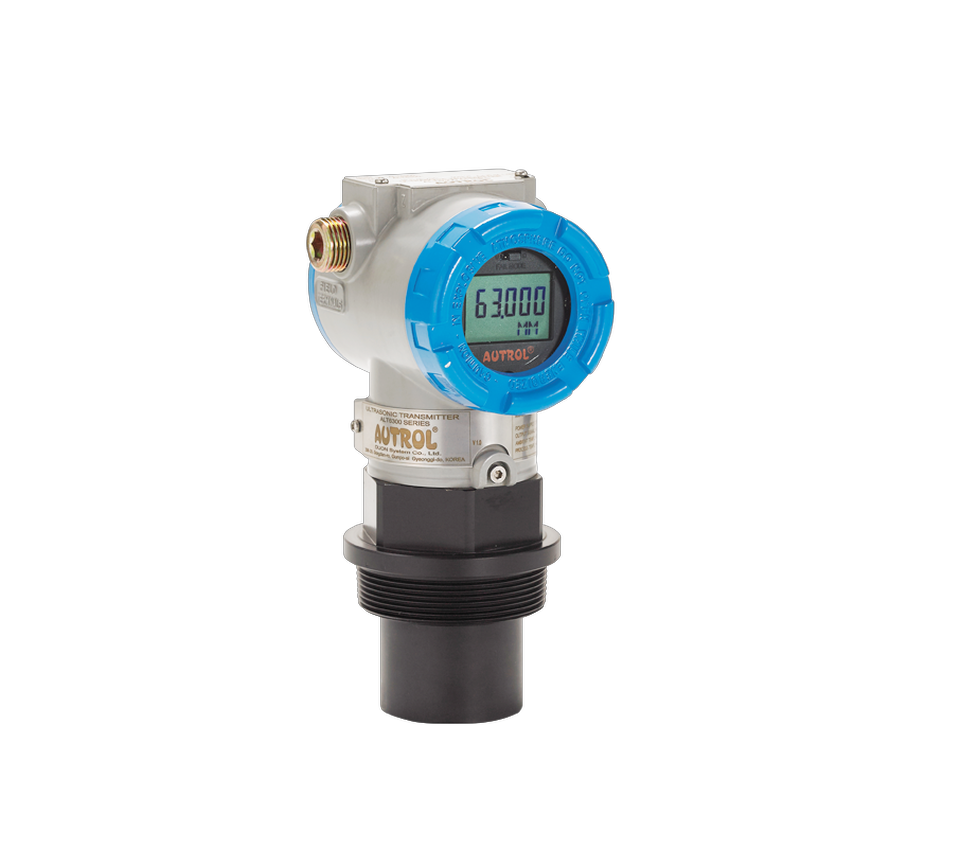

Autrol ALT6300 Ultrasonic Level Transmitter (5m)

Type: Non Contacted type Level Transmitter
Feature: Extension up to 600 mm
Range: 5 meter (Optional 10 meter)
Accuracy: ± 10 mm
Technology: Ultrasonic
Applicable condition: No Noise, simple tank, High Viscosity, No Pressure

Protocol: 4-20mA, Digital Communication, HART 7
Trim ability: Zero, DAC, FULL
Power supply & Load Requirement: 250 to 360 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -20 to 80℃
Certificate: CE, Rohs, IP66/67
