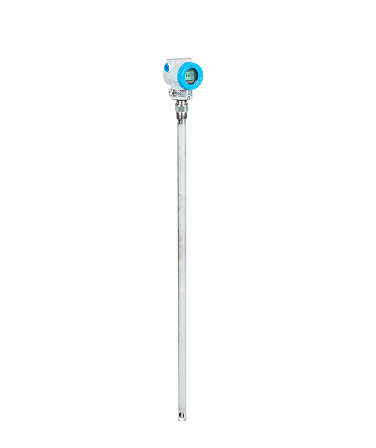

Autrol ALT6600 Contacted Type Level Transmitter (0.15 - 4m)

Type: Contacted type Level Transmitter
Range: 0.15 to 4 meter
Feature: PVC coating
Accuracy: ± 0.5% of Full Scale
Technology: Capacitance
Max pressure: Max 20 bar
Applicable condition: Sticky, Corrosive, no Foam, Not able to calibrate at the application, in Tank up to 100 deg C

Protocol: 4-20mA, Digital Communication, HART 7
Trim ability: Zero
Power supply & Load Requirement: 250 to 360 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -40 to 80℃
Certificate: Ex d, KCS, CE, Rohs, IP66
