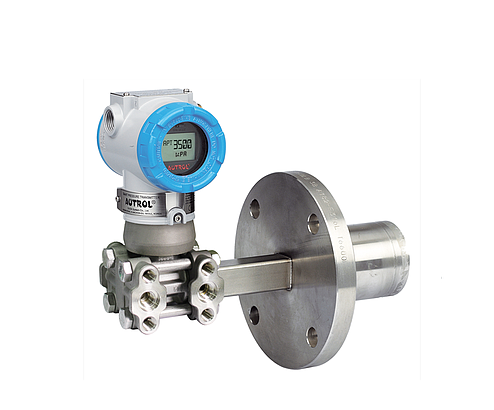

Type: Extension connection
Certificate: SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X
Sensor Range: 0 to 2,068 KPa max
Max. Working Pressure: 25 MPa / 3,625 psi
Accuracy: ±0.25%
Feature: 4 to 20mA, HART, Loop Powered
3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
Advantage: High temperatue & Corrosive application, Special Diaphragm Material & Coating available
Power supply & Load Requirement: 250 to 550 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -40 ~ +120 ℃
Range Abilitiy: 100:1
Stability: ±0.125% URL for 36 months
