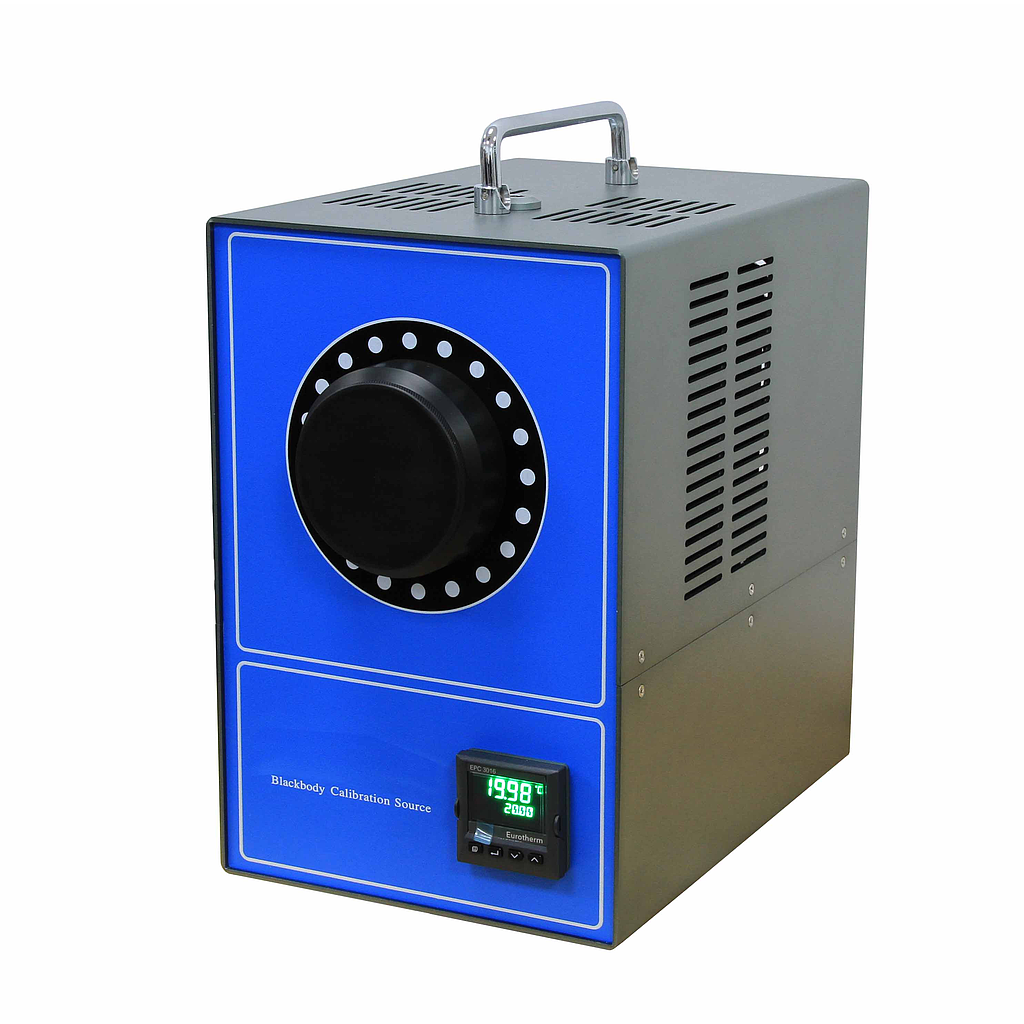

BalunTech BL673-220V Blackbody Calibration Source (-20℃~125℃)

Temperature range: -20℃ to 125℃

Aperture diameter: 65 mm

Heated emitter shape: End closed tube

Emissivity: better than 0.995

Resolution: 0.01℃ (<100℃)；0.1℃ (>100℃)

Stability (10min): 0.1℃

Uniformity: 0.15℃

Display accuracy: 0.5℃

Cool down time: 30 minutes from ambient to -20℃

Heat up time: 20 minutes from ambient to 125℃

Control method: Digital PID controller with readout

Temperature sensor: Precision Platinum RTD

Power supply: 220VAC, 350VA (110VAC is option)

Interface: RS485

Calibration band: 8um-14um spectral band

Dimension: 300mm(H)x 200mm(W)x 280mm(D)

Net weight: Approx. 8.3 kg

SCOPE OF DELIVERY

BL673 Portable infrared calibration source

Power cord (need to confirm the power plug type in advance)

User manual
