Low temperature range: -15℃ ~100℃
High temperature range: 50°C ~500℃
Display solution: 0.01°C (low), 0.1°C (High)
Aperture size: 65mm (low), 50mm (High)
Distance to target: 130mm (low), 160mm (High)
Emissivity: Better than 0.995
Stability (10 min): 0.1°C or 0.1%rd (whichever is greater)
Uniformity: 0.15°C or 0.15%rd (whichever is greater)
Heat cavity shape: End closed tube
Cool down time: 30 minutes from ambient to -20℃
Heat up time: 60 minutes from ambient to 500℃
Control method: Digital PID controller with readout
Temperature sensor: Precision platinum RTD
Power supply: 220VAC, 850WA (110VAC is optional)
Interface: RS485
Dimension: 435mm(D) x 390mm(W) x 200mm(H)
Net weight: 15 kg approx.
SCOPE OF DELIVERY

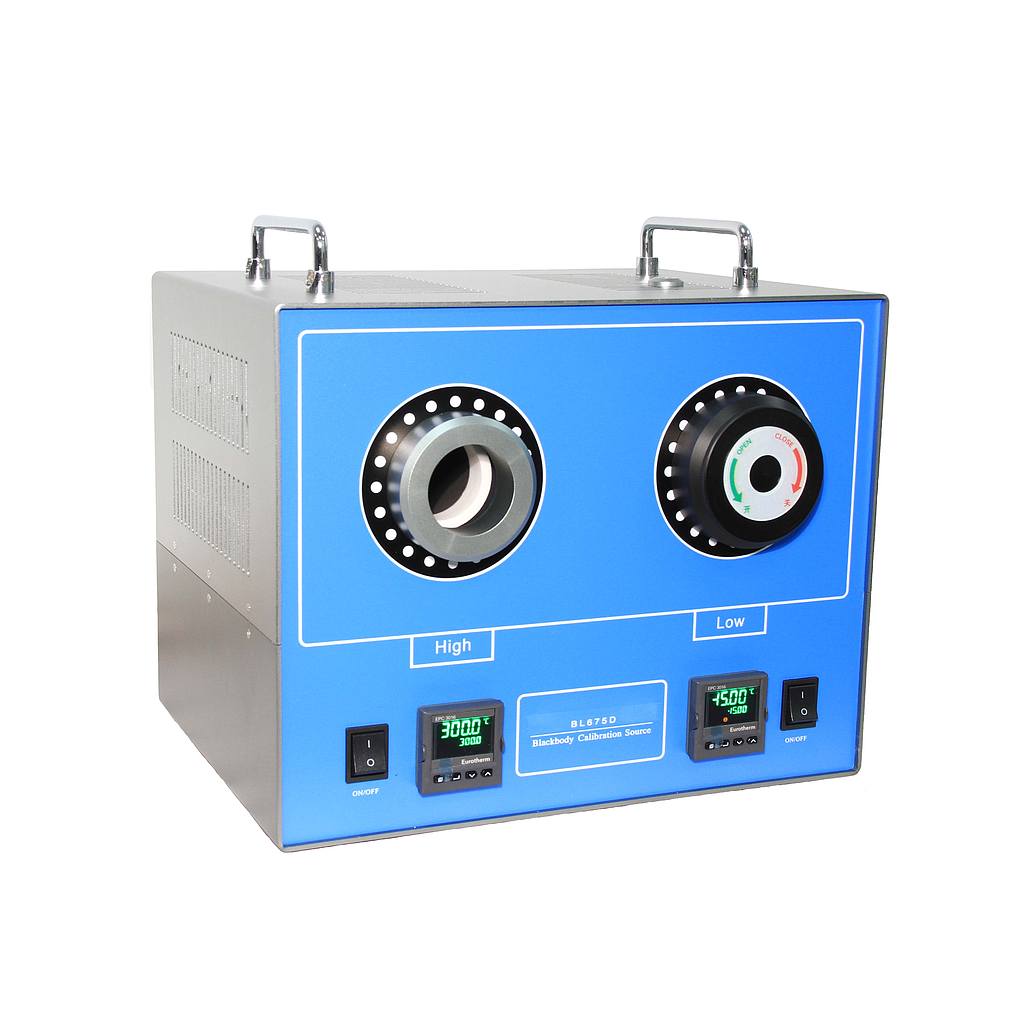

BL675D Dual blackbody calibration source
Power code (need to confirm the power plug type in advance)
User manual
Datasheet
The BL675D Dual Blackbody Calibration Source is easy to use, and makes calibration of infrared pyrometers with multiple temperature ranges faster than ever before by combining a hot and cold side in one unit.
The calibrators are simple to set and control. Merely input the desired Black Body temperature on the convenient front panel control buttons, let the unit reach the set temperature, wait a few moments to ensure stability, aim, and shoot. The radiated energy from the Black Body is measured by operator's IR thermometer. Compare the IR thermometer reading to the display on the controller and record the difference.
FEATURE
Ideal for All IR Guns!
Ultra-High Stability
0.995 emissivity
Fast Heat Up & Cool Down Times
Built-in temperature correction function
Simple to Use
Rugged & Lightweight
Customized to 650℃
APPLICATION
Infrared temperature sensors
Infrared thermal imaging systems
Spectrographic analyzers
Spectral radiometers
Heat flux meter
