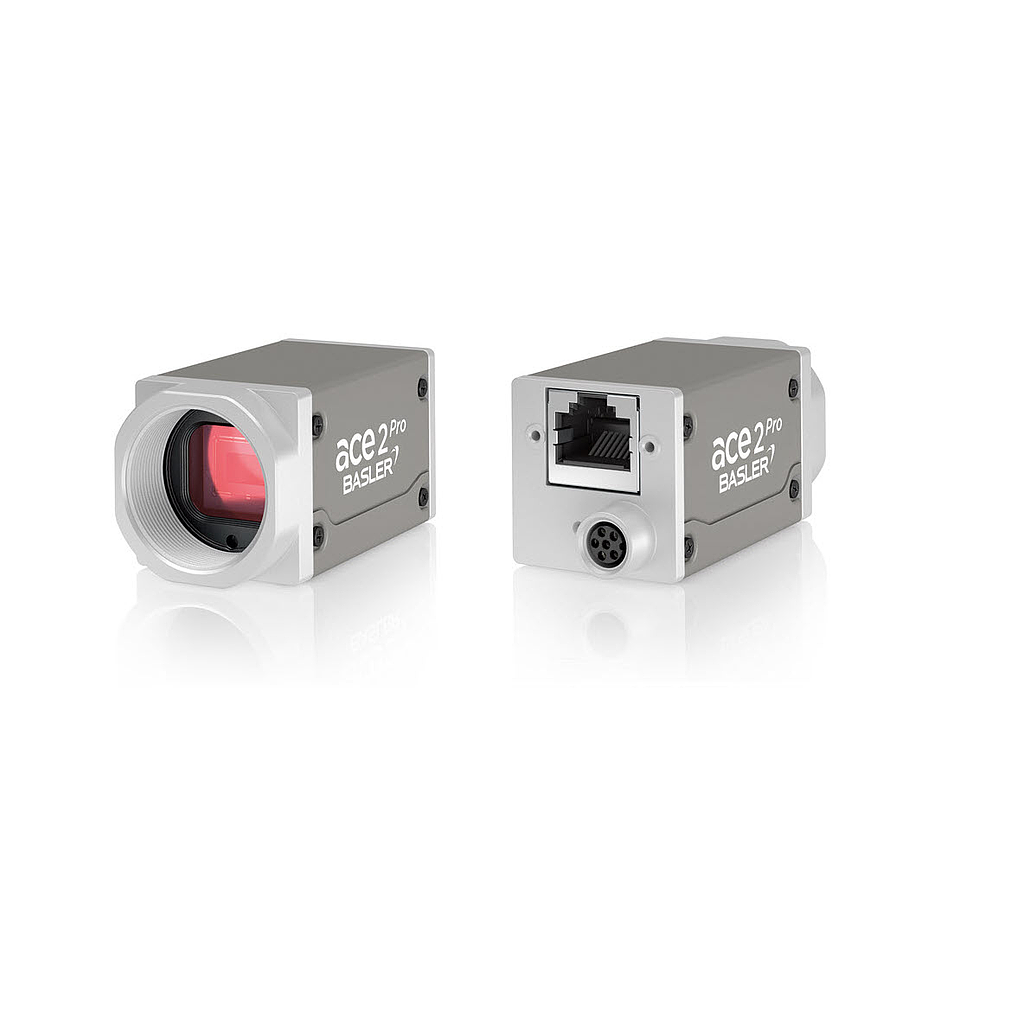

Resolution (H x V Pixels): 4128 x 3008 (full resolution) / 4096 x 3000 (default resolution)
Resolution: 12 MP
Sensor Type: Sony IMX545-AAMJ-C / Progressive scan CMOS / Global shutter
Sensor Format: 1/1.1 inch
Effective Sensor Diagonal: 14 mm
Pixel Size (H x V): 2.74 x 2.74 µm
Frame Rate (at Default Settings): 8.4 fps / 9.5 fps (with Bandwidth Reserve mode set to Performance and packet size set to 4000)
Mono / Color: Mono
Image Data Interface: Fast Ethernet (100 Mbit/s) / Gigabit Ethernet (1000 Mbit/s)
Synchronization: Via hardware trigger / Via software trigger / Via free run
Exposure Time Control: Via hardware trigger / Programmable via the camera API
Camera Power Requirements: ≈4.7 W (typical) when using Power over Ethernet / ≈3.4 W (typical) @ 12–24 VDC when supplied via I/O connector
I/O Lines: 1 opto-coupled input line / 2 general purpose I/O (GPIO) lines
Lens Mount: C-mount
Size (L x W x H): 48.9 x 29 x 29 mm (without lens mount or connectors) 62.2 x 29 x 29 mm (with lens mount and connectors)
Weight: <105 g
Conformity: CE (includes RoHS), EAC, UL Listed, FCC, KC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE)
Software: Basler pylon Camera Software Suite (version 6.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android
