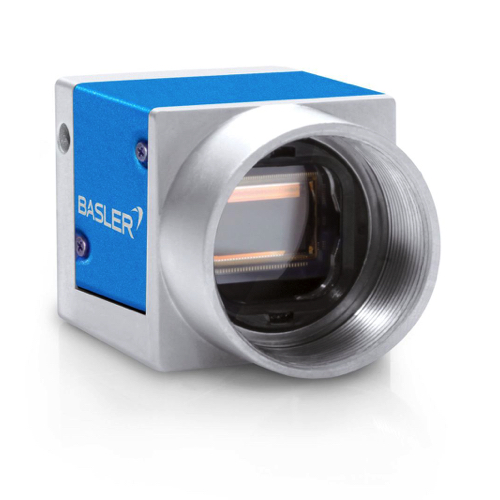

Basler acA2500-20gmMED Area Scan Camera (2592 x 2048 pixels; CMOS Python5000)

Name: Basler acA2500-20gmMED Area Scan Camera (2592 x 2048 pixels; CMOS Python5000)
Brand: Basler

ModelacA2500-20gmMED

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Resolution (H x V): 2592 px x 2048 px

Resolution: 5.3 MP

Sensor Type: onsemi PYTHON 5000 (NOIP1SN5000A), Progressive Scan CMOS

Sensor Size: 1 inch

Effective Sensor Diagonal: 15.9 mm

Pixel Size (H x V): 4.8 μm x 4.8 μm

Frame Rate: 21 fps (at fast sensor readout mode); 20 fps (at normal sensor readout mode)

Mono/Color: Mono

Interface: GigE (100/1000 Mbit/s)

Synchronization: Hardware trigger, software trigger, free run

Exposure Control: Via hardware trigger, programmable via camera API

Power Requirements: ≈ 3.7 W (typical), ≈ 3.9 W (max.) via PoE; ≈ 3.3 W (typical), ≈ 3.5 W (max.) @ 12–24 VDC via I/O connector

Lens Mount: C-mount

Housing Size (L x W x H): 42.0 mm x 29 mm x 29 mm (without lens mount or connector); 60.3 mm x 29 mm x 29 mm (with lens mount and connector)

Weight (typical): < 90 g

Conformity: CE (includes RoHS), EAC, UL Listed, FCC Class B, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), ISO 13485:2016, REACH, KC

Software: Basler pylon Camera Software Suite (Version 4.0 or higher); available for Windows, Linux x86, Linux ARM, macOS, and Android
