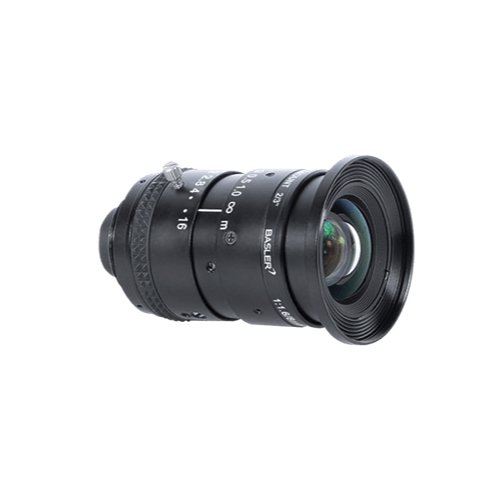

Focal Length f: 8.6 mm ± 5 %
Aperture Range: F1.6–F16
Image Circle: 11 mm (2/3")
Focus Range: 0.25 m to infinity
Optimum Working Distance: 0.5 m
Optimum Magnification: 0.032
Relative Illumination at Full Aperture: At least 50 %
Resolution (25 % MTF, Center, Full Aperture): Designed for 90 LP/mm
Optical Distortion: Typical -4.8 %
Angle of View, 1/1.8 Format: Horizontal: 46.2° (@ MOD) to 46.6° Vertical: 35.1° (@ MOD) to 35.5°
Angle of View, 2/3 Format: Horizontal: 55.7° (@ MOD) to 56.2° Vertical: 42.9° (@ MOD) to 43.1°
Wavelength Range: Visible (400–700 nm)
Pupil Magnification, ßP: 6.73
Chief Ray Angle, CRA: 9.9°
Front Focal Length, sF: 6.3 mm
Back Focal Length, sF: 8.4 mm
Principal Point Separation, HH: 43.79 mm
Entrance Pupil Position, sEP: 15.3 mm
Exit Pupil Position, sAP: -57.55 mm
Overall Optical Length, d: 75.01 mm
Flange Back: 17.526 mm
Mount: C-mount
Weight: Approx. 136 g
Focus/Iris Operation: Manual Operating angle: 190°
