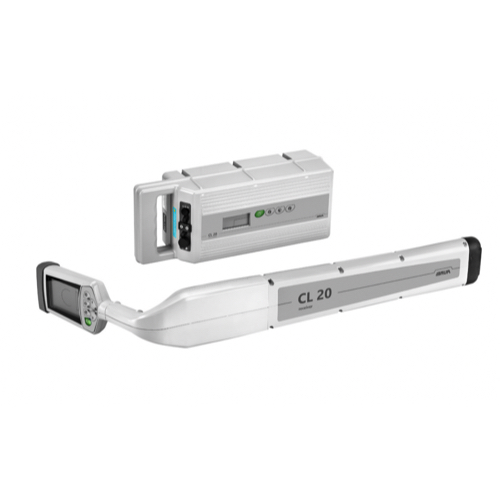

BAUR CL 20 Cable Locator (5 – 25,000 ohm, 126 dB)

Transmitter

Operating frequencies 815 Hz, 8 kHz, 33 kHz, 82 kHz, 2 kHz, 10 KHz, 491 Hz, 512 Hz, 640 Hz, 982 Hz,1090 kHz, 8440 kHz, 9820 kHz, 32,768 kHz

Load adjustment: 5 – 25,000 ohm (automatic)

Output power: 10 power settings

Low and medium frequencies: 0.2 W – 10 W

High frequencies: (above 44 kHz) 0.2 W – 1 W

Display indicators: AC load assistance measurement, relative ohms, voltage, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to receiver

Battery type: 10.8 V, 10 Ah, 84.24 Wh lithium-ion battery

Battery life

- Continuous operation: 8 – 20 h (depending on load, frequency,

power settings)

- Intermittent: 40 – 60 h

Dimensions (W x H x D): Approx. 410 x 160 x 150 mm

Weight: 2.7 kg

Receiver

Operating frequencies

Active: 815 Hz, 8 kHz, 33 kHz, 82 kHz, 2 kHz, 10 KHz, 491 Hz, 512 Hz, 640 Hz, 982 Hz,1090 kHz, 8440 kHz, 9820 kHz, 32,768 kHz

Passive: 50 Hz, 150 Hz, 250 Hz, 350 Hz, 450 Hz, 60 Hz, 180 Hz, 300 Hz, 420 Hz, 540 Hz; LiveSound™; Radio Frequency; Rectified CP

50 Hz and Rectified CP 60 Hz

Operating modes

▪ Peak method

▪ Pinpoint peak method

▪ Null method

▪ Simultaneous peak/null

▪ Tracing with right/left indication

Display indicators: Backlit segmented LCD bar graph, battery

condition, continuous mode signal strength, depth measurement, line orientation, left/ right line guidance, operating mode, volume level and function indicators

Acoustic indication: Variable pitch and live sound, 4 volume

selections including mute

Current measurement: Display of current level of target and nearby

conductors

Gain adjustment:

-Left/right guidance mode: automatic

-All other operating modes: manual gain adjustment & automatic centering

Signal strength: LCD bar display, Digital absolute value: 0 – 999

Dynamic range: 126 dB

Depth measurement

Digital: 0.02 – 15 m with accuracy > 5% of depth

Battery type: 10.8 V, 5.2 Ah, 56.16 Wh lithium-ion battery

Battery life

Continuous operation: Approx. 30 h

Intermittent: Approx. 82 h

Dimensions (W x H): Approx. 770 x 240 mm

Weight: 1.9 kg

General

Safety and EMC:

CE compliant in accordance with

Low Voltage Directive (2014/35/EU) and

EMC Directive (2014/30/EU)

Degree of protection: IP65

Ambient temperature (operational): -20°C to +55°C

Storage temperature: -20°C to +55°C

Charger: 100 – 240 V, 50/60 Hz, max. 0.35 A

Standard delivery

▪ Receiver incl. lithium-ion battery

▪ Transmitter incl. lithium-ion battery

▪ Connection cable 3 m, with connection clips

▪ Earth spike

▪ Charger AC 100 – 240 V

▪ Car charger, 12 V

▪ Carrying bag for receiver and transmitter

▪ User manual

Datasheet
