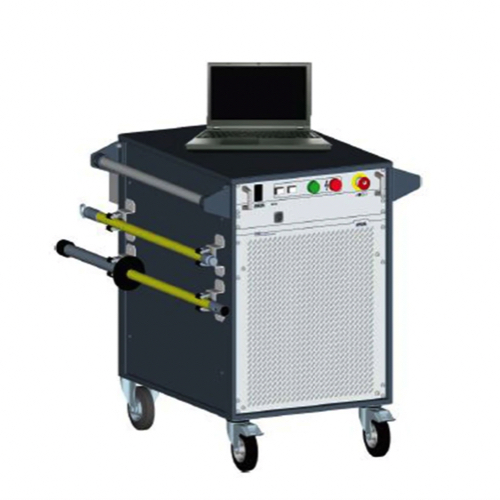

BAUR PHG 80 VLF Test System (1.4 – 80.6 kVpeak)

Output voltage

Frequency range: 0.01 – 1 Hz

VLF truesinus®: 1 – 38 kVrms, 1.4 – 53.7 kVpeak

VLF square wave voltage: 1 – 80 kV

DC voltage: 0 to ±80 kV

Max. capacitive load:

Up to 20 μF

1.2 µF @ 0.1 Hz @ 57 kVrms

3 µF @ 0.1 Hz @ 38 kVrms

4 µF @ 0.1 Hz @ 30 kVrms

Resolution: 0.1 kV

Accuracy: 1%

Output current

Measurement range: 0 – 200 mA

Output current:

1.8 mA @ 80 kV

60 mA @ 50 kV

90 mA @ 20 kV

Max. burn current: 120 mA

Resolution: 10 μA

Accuracy: 1%

General

Power supply: 200 – 260 V, 50/60 Hz

Option: 100 – 140 V, 50/60 Hz (with auto transformer)

Max. power consumption: 3,500 VA

Reverse voltage protected: Up to 16 kV

Degree of protection: IP22

Dimensions HV generator

(W x H x D) approx. 755 x 850 x 991 mm (19", 15 RU)

Weight HV generator: Approx. 199 kg, incl. rack and connection cable

Ambient temperature (HV generator): -20°C to +55°C (from 45°C with reduction in performance)

Storage temperature (HV generator): -30°C to +70°C

Relative humidity: Non-condensing

Safety and EMC

CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

BAUR Software 4

Details about the BAUR Software 4 and the system requirements can be found in the data sheet for the BAUR Software 4.

Dissipation factor measurement

VLF truesinus®: 1 – 57 kVrms

Load range: ≥10 nF

Measurement range: 0.1 x 10^-3 – 1,000 x 10^-3

Accuracy: 1 x 10^-4

Resolution: 1 x 10^-6 (mean value of the dissipation factor)

Detection and compensation of leakage currents: automatic

Standard delivery

PHG 70 portable VLF test system:

▪ PHG 70 or PHG 80 HV generator

▪ SCU safety control unit

▪ Laptop incl.

– pre-installed Windows operating system

– pre-installed BAUR Software 4 (cable testing)

– Carrying bag

▪ GDR 80-500 discharge and earth rod

▪ 19” rack for PHG 70 portable or PHG 80 portable incl.

HV connection cable, earth cable and mains supply cord,

cable lengths of 10 m respectively

▪ Set of 4 wheels for 19” rack, mounted

▪ Carry handle, 2 pcs

▪ User manual
