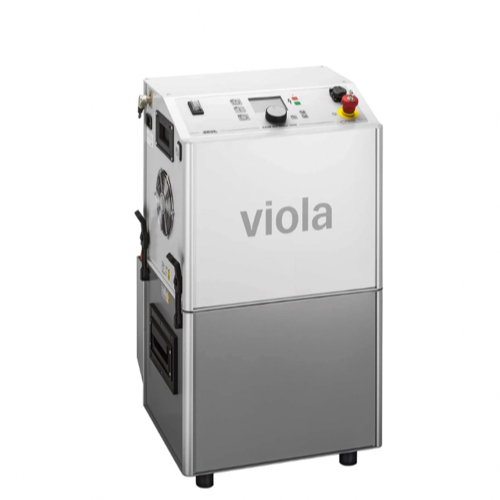

BAUR viola High-Voltage Test And Diagnostics Device (1 – 44 kVrms (62 kVpeak))

Output voltage:

Frequency range: 0.01 – 0.1 Hz

VLF truesinus®: 1 – 44 kVrms (62 kVpeak)

VLF square wave voltage: 1 – 60 kV

DC voltage: ±1 – 60 kV

Resolution: 0.1 kV

Accuracy: 1%

Load range (VLF testing): 1 nF – 10 µF

Output current:

Measurement range: 0 – 70 mA

Resolution: 1 µA

Accuracy: 1%

Max. capacitive load:

0.85 μF at 0.1 Hz, 44 kVrms / 62 kVpeak

2.7 μF at 0.03 Hz, 44 kVrms / 62 kVpeak

7.7 μF at 0.01 Hz, 44 kVrms / 62 kVpeak

General:

Input voltage: 100 – 260 V, 50/60 Hz

Power consumption: Max. 1,400 VA

Reverse voltage protected up to 13 kV

Degree of protection: IP24

Data interface: USB 2.0

Dimensions (W x H x D) excl. cable compartment:

HV part: 505 x 503 x 405 mm

Operating unit: 505 x 433 x 405 mm

Total (two-part): 505 x 854 x 405 mm

Weight:

HV part: 57 kg

Operating unit: 19 kg

Ambient temperature (operational): -10°C to +50°C

Storage temperature: -20°C to +60°C

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

User interface available in 13 languages: Czech, Chinese (CN), Chinese (TW), Dutch, English, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish

viola standard delivery

▪ viola VLF tester, incl.

– HV connection cable 10 m (fix mounted)

– GDR 80-272 discharge and earth rod

– Earth cable, 3 m, with earth terminal

– Jumper plug for external emergency off unit

– G-clamp, 45 mm

– Mains supply cord, 2.5 m

– User manual

– Pocket guide
