General
Measuring principle: Static image analysis method, automatically scanning
Parameters: Particle size, shape, and number
Measurement performance
Measuring range: 1 – 10,000 μm
Typical measurement time: 3 to 5 min *
Number of size/shape classes: 100 (user adjustable)
Special functions: SOP settings, analysis of saved images

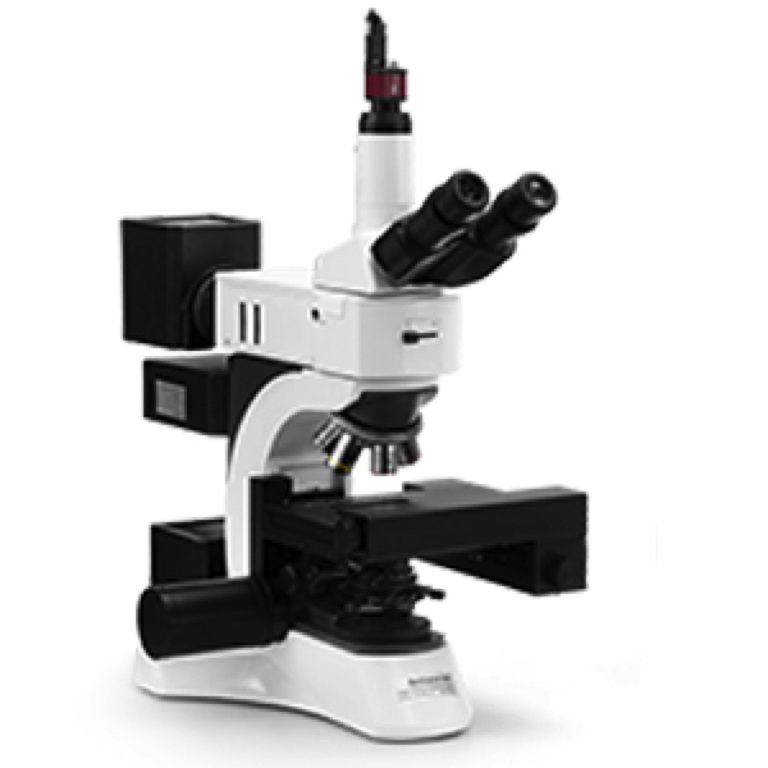

Main device
Optical lens: 4 ×, 5 ×, 10 ×, 20 × (with 40 × digital magnification)
High-speed camera: Up to 120FPS
Light source: Halogen lamp, Köhler illumination
Stage scanning range: 55 × 55 mm
System parameters
Dimensions (L × W × H): 35.0 × 65.0 × 67.0 cm
Weight: 18.7 kg
Supply voltage: 100 / 240 V, 50 / 60 Hz
Software
Conformity: ISO 13321, ISO 9276, ISO 16232, ISO 4406
Reports: Customizable reporting ( Sample and sample preparation dependent)
BT – 910 dry powder dispersion module
Dimensions (L × W × H): 23.5 × 16.5 × 26.6 cm
Weight: 4.3 kg
Supply voltage: 100 / 240 V, 50 / 60 Hz
Dispersion air pressure: ≤ - 60 kPa
