Stroke length :0-15mm, accuracy:±0.01mm
Indenter speed : 0.02-0.4mm/s,accuracy: ±0.5%
Control: Automatic
Camera : Colorful CCD
Light source : LED light source
Cupping result : Digital (resolution 0.001mm）
Interface: USB port for mouse & U disk & CCD
Max. panel width : 80 mm
Max. panel thickness (steel): 1.25 mm (Standard Speed 0.2mm/s)
Max. panel thickness (aluminum): 3mm (Standard Speed 0.2mm/s)
Max. cupping force: 15KN
Power supply: 230 VAC-50 Hz (110V-60Hz option)
Introduction:

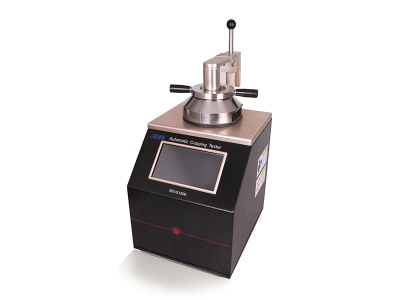

BEVS Automatic Cupping Tester is an advance technology to efficiently assess the elasticity and cupping resistance of various coatings, with a new generation micro-electro and CCD technology, also has strong functions such as can be video or photo the deformation process or result that can be copied the image to U disk and then connect with PC to analyse the various factors between coating performance and substrate etc.
Customized design software operation system and provide the USB port for mouse and U disk and camera, best choice for R&D and QC people.
The test is either used as a "pass/fail" test by prest to a specified depth or defining the minimum depth at which a coating fails by gradually increasing the indentation, or carry out the deformation by indentation under standard conditions.
Features:
Touch screen control technology
Customized operation system
Mouse directly connect with instrument
Directly input testing parameter via screen or mouse
Realtime display cupping process
Realtime monitor cupping image
Realtime show cupping speed and depth
With video and photo
Automatic calibration zero
Manual and preset mode
Order Information:
BEVS 1606 Automatic Cupping Tester
BEVS 1606/P/003 External HD Camera
