Gun distance: 150-250mm
Spraying pressure: 0.1-0.5Mpa
Moving speed: X axis 20-350mm/s, Z axis 100mm/s
Equipment size: L1150 x W1002 x H1536mm (plus 1732mm extension rod)
System air pressure: 0.6Mpa
Shell material: SUS304 stainless steel
Spraying area: max. L300 x W300mm; or 6 standard samples, max. L150 x W100mmspaces such as laboratories.
Product Briefing

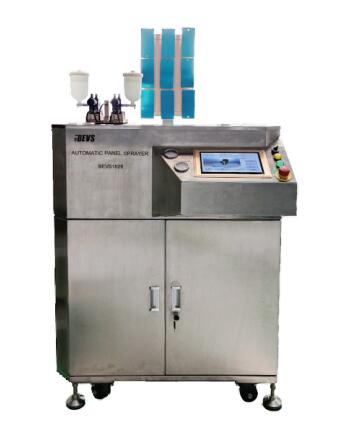

BEVS 1829 explosion-proof automatic panel sprayer is a spraying equipment that can intelligently and quickly obtain a stable and uniform coating, which is excellent and reliable. The machine is equipped with a 10-inch high-definition explosion-proof touch screen, which is easy to operate. It is with one-button start making the spraying completed automatically. The intelligent programming spraying process makes it a good choice for coating and related material laboratory. The explosion-proof grade of the machine is ExdbebibmbIIBT4Gb (combustible gas).
Product Functions
X, Z-axis automatically moves according to the set program, Y-axis manually adjust the spray
Gun distance according to actual needs.
The equipment can store hundreds of spraying programs, which can be activated directly.
The user can edit spraying moving speed, spraying atomization pressure, spraying times, start spraying position and end position and other parameters. After confirmation, spray automatically according to the set parameters. After saving, call it directly next time.
The screen displays the spraying trajectory, current spraying times and the remaining spraying times in real time.
Order Info
BEVS 1829 EXP Automatic Panel Sprayer (Including one automatic spray gun)
Datasheet
