Technical info
Applicable paint types: water/solvent based paint
Applicable coating viscosity range: 1-20000cps
Moving speed: X axis 25-250mm/s; Y axis 25-250mm/s
Stroke length: X axis 220mm; Y axis 220mm
Gun distance: 210mm
Atomization air pressure: 0.3-0.7Mpa
System working pressure: 0.5-0.7Mpa
Spraying area: maximum 100X180mm
Spray gun form: no-clean automatic spray gun
Introduction
With Industry 4.0, Made in China 2025 and improving the competitiveness of products and accelerating the speed of research and development, BEVS has developed the BEVS 3226N Intelligent Panel Coating Station to cope with the trend.It is a small and intelligent mobile station developed that integrates intelligent instruments, mechanical actions, automatic control systems, and test materials. It can automatically complete loading and unloading, realize rapid automatic spraying, greatly improve the reproducibility and efficiency of film making, and obtain a uniform film with physical, appearance, and chemical properties of the film. It eliminates various instabilities caused by human factors such as speed, pressure and direction in the film making process, and provides a high-precision test template for testing the rheological properties, abrasion resistance, and hiding power of raw materials.
Features
Real-time data encrypted transmission
Fully automatic
Free combination of instruments and equipment
Remote command anytime, anywhere
Get data, analysis and results reporting anytime, anywhere
Sharing with intelligent, automated workshop production
Shorten research and development, testing cycle
High efficiency and greatly reduced R&D cost
Data saving and output
Compatible with many different paints and realizing rapid automatic film application
Order Info

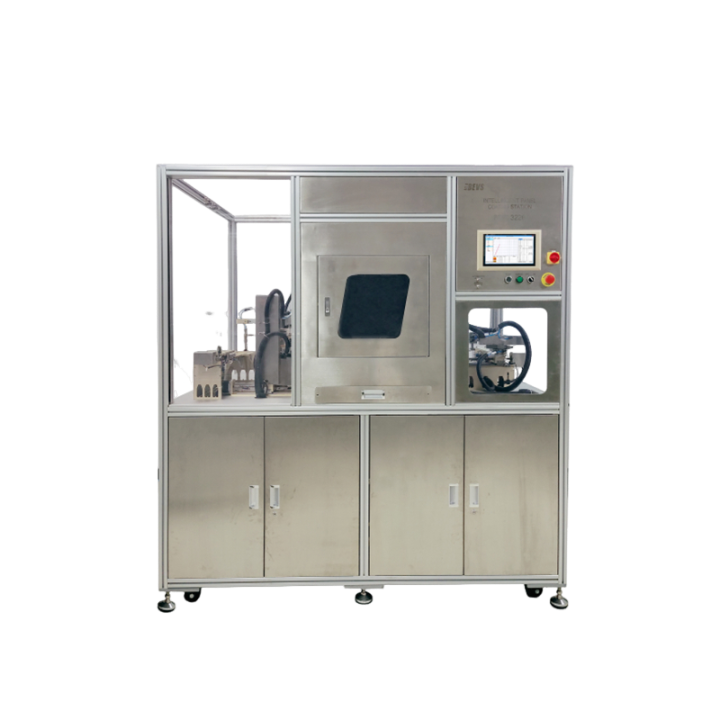

BEVS 3226N Intelligent Panel Coating Station
