Panel moving speed: X axis 10~600mm/s, Y axis 10~100mm/s
Gun distance: 150~250mm
Spraying pressure: 0.1~0.5Mpa
System air pressure: 0.6Mpa
Spraying area: MAX 250 x 500mm； Or 4 standard panels 150 x 100mm
Station dimension: 1500 x 1300 x 2320mm
Gross: Weight: 600KG
Power: 1KW (excluding negative pressure fan)
Exhaust air volume: 2600m ³/ h
Control box size: 523 x 380 x 1400mm
Introduction

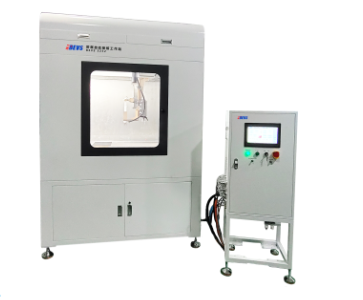

The BEVS 3232 EXP Automatic Panel Spray Station uses a portable paint syringe, which can not only achieve small dose of paint spraying, rapid replacement of paint samples, but also clean-free. The design of sealed controllable "spray chamber" can make the station widely used in production workshops, laboratories and other places.
Features
No-clean nozzle
10-inch HD touch screen
Intelligent programming spraying process
Two-axis fully automatic spraying
Spray in two directions at the same time
The height of the nozzle from the substrate can be adjusted
Spray amplitude and atomization parameters can be adjusted as required
Can be quickly disassembled into two layers, which is convenient for transportation and access to the laboratory and other highly restricted spaces
Equipped with explosion-proof electrical parts, external control box
Functions
Two-axis (X, Y) automatic control, Z-axis spray gun distance adjustable; The X and Y axes operate automatically according to the established procedures, and the Z axis manually adjusts the spray gun distance according to the actual needs.
The station can store hundreds of spraying programs, which can be called directly.
The user can customize and program the spraying program: input the parameters such as spraying moving speed, spraying atomization pressure, spraying cycles, starting and ending positions of spraying, and then spray automatically according to the set parameters after confirmation. After saving, it can be directly called next time.
The interface displays the current spraying cycles and the remaining spraying cycles in real time.
Order Info.
BEVS 3232 EXP Automatic Panel Spray Station
