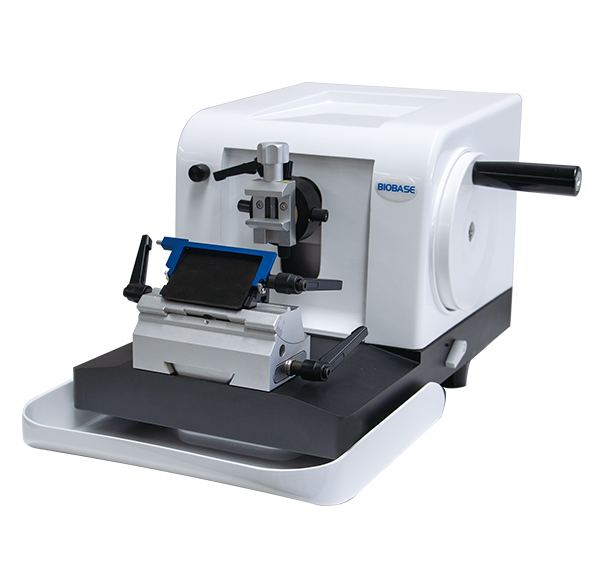

BIOBASE BK-2258 Manual Rotary Microtome

Adjustable Cutting Thickness: 0.0 - 60µm, with adjustment steps as follows:

From 0 – 2 µm, each step adjusts by 0.5µm

From 2 - 10µm, each step adjusts by 1µm

From 10 - 20µm, each step adjusts by 2µm

From 20 - 60µm, each step adjusts by 5µm

Sample Grinding Thickness Range: Adjustable from 0 - 60µm

Minimum Cut Surface Thickness: 0.5µm

Maximum Sample Size: 50 x 70mm

Accuracy: ± 5%

Horizontal Sample Feed Range: 28 mm

Vertical Sample Feed Range: 52 mm

XY Plane Sample Holder Angle Adjustment: 8°

Machine Weight: 40kg

Power Supply: 220-240V, 50/60Hz

Package Includes:

Main Machine

Sample Clamp + Standard Accessories

Cutting Blade Set

User Manual

Datasheet
