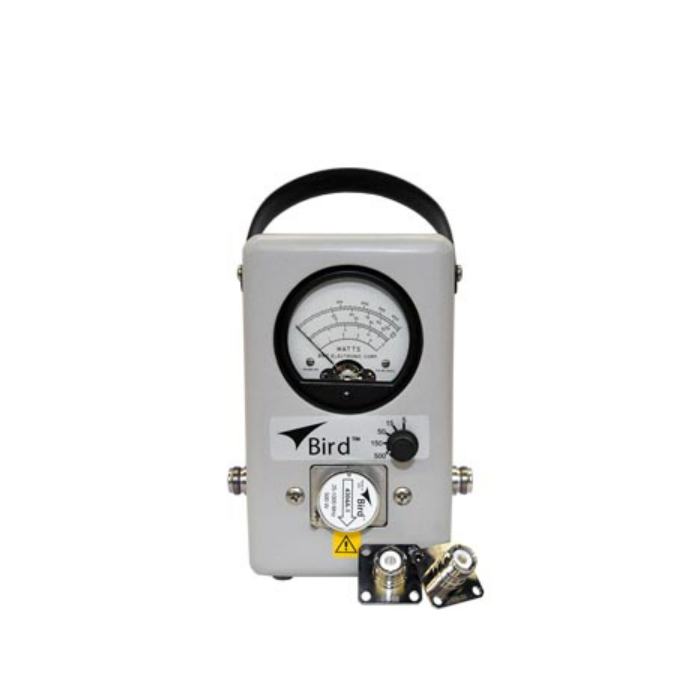

Bird 4304A RF Wattmeter (5, 15, 50, 150, 500 W)

Power Range: 5, 15, 50, 150, 500 W

Frequency Range: 25MHz to 1.0 GHz

Insertion VSWR: 25 to 521 MHz, 1.05 max. (with UHF female conn.)

512 to 1000 MHz, 1.07 max.

Accuracy:

25 to 100 MHz, ± 7% of full scale

100 to 512 MHz, ± 6 of full scale

512 to 1000 MHz, ± 7% of full scale

Insertion Loss:

25 to 512 MHz, 0.10 dB max. (with UHF female conn.)

512 to 1000 MHz range, 0.13 dB max.

Connectors:

Two Type-N (female) QC

Two UHF (female) QC

Finish: Light Gray Powder Coat

Dimensions(H x W x D):

6-7/8 in x 5-1/8 in x 3-5/8 in, including connectors

175 mm x 130 mm x 92 mm

Weight: 3 lbs. (1.4 kg)

Manual
