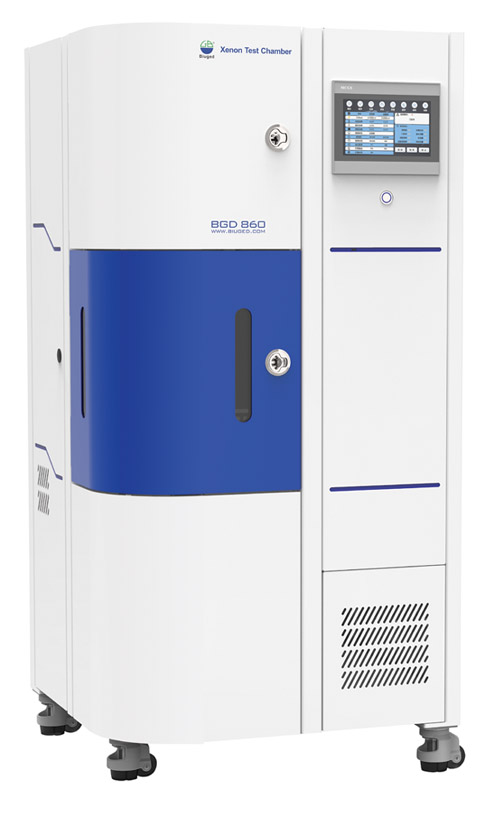

Biuged BGD 860 Xenon Test Chamber（New）

■ Xenon Lamp：One 1.8 kW xenon lamp （imported from America）

■ Filter：Daylight filter （Also can choose extended UV filter or window glass filter）

■ Lamp Lifetime: Near 1.500 hours

■ Exposure Area：2.200 cm2 (can put 22 pcs samples of 150×70mm size)

■ Adjustable Irradiance Range：

0.3～0.75 W/m2 (Single point of control：340nm)

0.5～1.35 W/m2 (Single point of control：420nm)

30 W/m2～90 W/m2 (Full spectrum ：from 300～400nm)

310 W/m2～780 W/m2 (Full spectrum ：from 300～800nm)

■ Controlling irradiance point：340nm or 420nm or 300nm～400nm（show at the same time）

■ Adjustable Black Panel Temperature Range：RT～100℃

■ Adjustable Working room Temperature Range：RT～65℃

■ Adjustable relative humidity of working room：10%～75%（Light）；10%～95%（Dark）；

■ Overall Size：860mm×800mm×1770mm

■ Net Weight：200KG

■ Power Supply：AC 380V（Three-phase four-wire system）/ 50HZ；Max. Current 16 A

■ Total Machine Power：5.5KW

■ Requirements of Compressed air：Clean，oilless compressed air with 0.5MPa pressure，Max. air supply is near 60L/min. Average air consumption is 10L/min～30L/min（Depends on testing standard）
