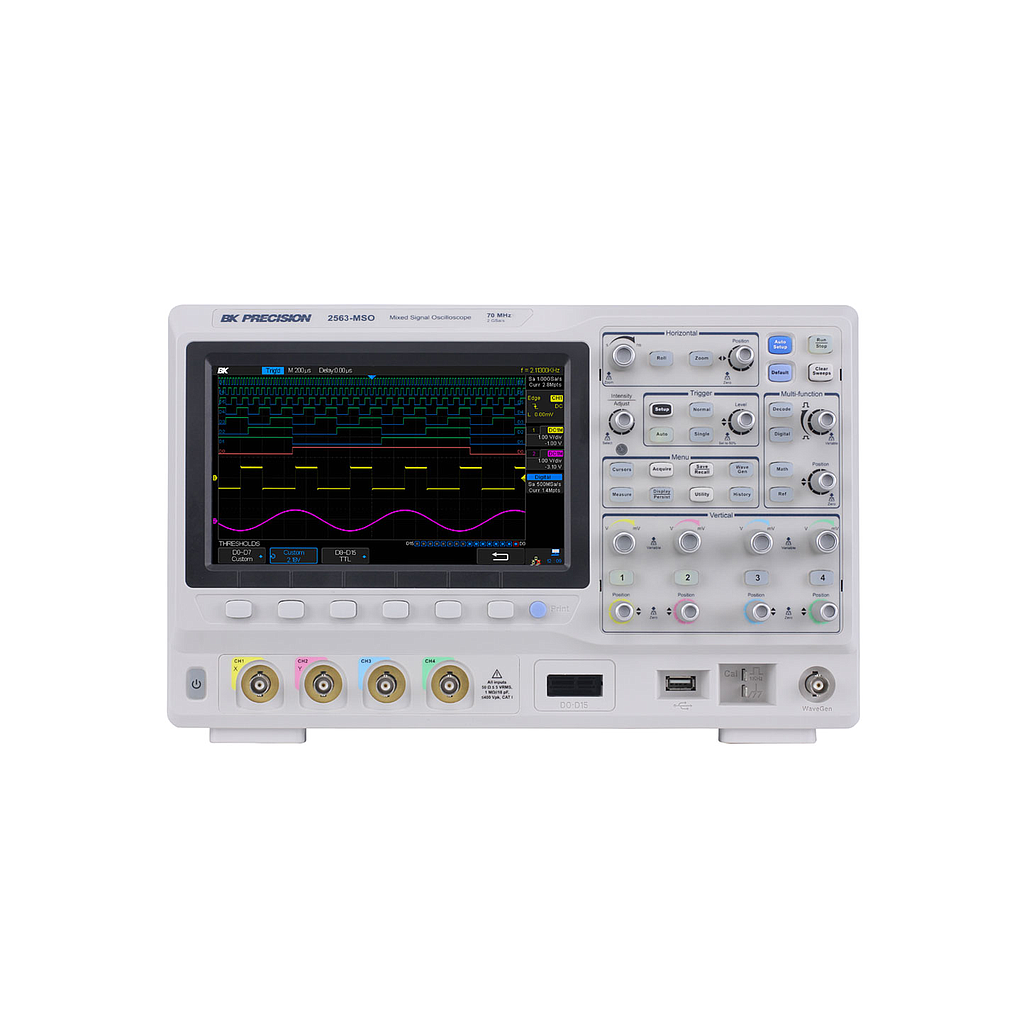

Bandwidth:70 MHz
Input Channels 4 Analog Channels
Sample Rate 2 GSa/s (single channel)
Typical Rise Time < 3.5 ns (
Memory Depth 140 Mpts (single channel),
Waveform Update Rate 140,000 wfms/s
Input Coupling DC, AC, GND
Input Impedance 1 MΩ ± 2% || (22 pF ±3 pF)
50 Ω ± 2%
Vertical Resolution 8 bits
Vertical Sensitivity 500 μV/div to 10 V/div (1-2-5 )
Maximum Input Voltage 1 MΩ: < 400 Vpk; 50 Ω: < 5 Vrms
DC Gain Accuracy ±3%: 5 mV/div to 10 V/div; ±4%: < 2 mV/div
Modes Auto, Normal, Single
Coupling DC, AC, LF Reject, HF Reject,
Noise Reject Ch1-Ch4
Trigger Level
Internal: ±4.5 div from center
External: EXT: ±0.6 V
EXT/5: ±3 V
Hold-Off Range 100 ns to 1.5 s
Types Edge, Slope, Pulse, Video, Window,
Interval, Dropout, Runt, Pattern
Serial Trigger I2C, SPI, UART/RS232, CAN, LIN
Waveform Measurements
Voltage
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Mean,
Cmean, Stdev, Cstd, Vrms, Crms, FOV, FPRE, ROV,
RPRE, Level@Trigger
Time +SR, -SR, Period, Freq, +Width, -Width, Rise, Fall,
BWidth, +Duty, -Duty, Time@Mid
Delay Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFF, Skew
Statistics Current, Mean, Min, Max, Stdev, Count
Gating Time domain
I/O Interface
Standard USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Pass/Fail 3.3 V TTL Output
Display 8” Color TFT-LCD, 800 x 480 Resolution
Wave Display Mode Vectors, Dots
Persistence Off, Infinite, 1 sec, 5 sec, 10 sec, 30 sec
Intensity Grading 256 Levels
Language
English, French, Japanese, Korean, German,
Russian, Italian, Portuguese, Simplified Chinese,
Traditional Chinese
Function/Arbitrary Waveform Generator (FG2560)
Waveforms Sine, Square, Ramp, Pulse, DC, Noise,
Cardiac, Gaus Pulse, Exp Rise
Arbitrary 4 Slots for Arbitrary Waveforms
Maximum Output Frequency 25 MHz
Sample Rate 125 MSa/s
Frequency Resolution 1 μHz
Frequency Accuracy ±50 ppm
Vertical Resolution 14 bits
MSO Digital Channels (LA2560/LP2560)
Digital Channels 16
Sample Rate 500 MSa/s
Memory Depth 14 Mpts/Ch
Maximum Input Voltage ± 20 Vpeak
Threshold Accuracy ± (3% of threshold setting + 150 mV)
Input Dynamic Range ± 10 V
Power Requirements 100 to 240 VAC, CAT II, 50 VA Max,
45 Hz to 440 Hz
Dimensions (W x H x D) 13.8” x 5” x 8.8” (352 x 128 x 224 mm)
Weight (4-ch) 7.9 lbs (3.6 kg)
(2-ch) 7.5 lbs (3.4 kg)
included Accessories
Passive probes (one per channel), power cord,
certificate of calibration,
USB (Type A to B) communication cable
Optional Accessories 16-channel digital logic probe (LP2560)
