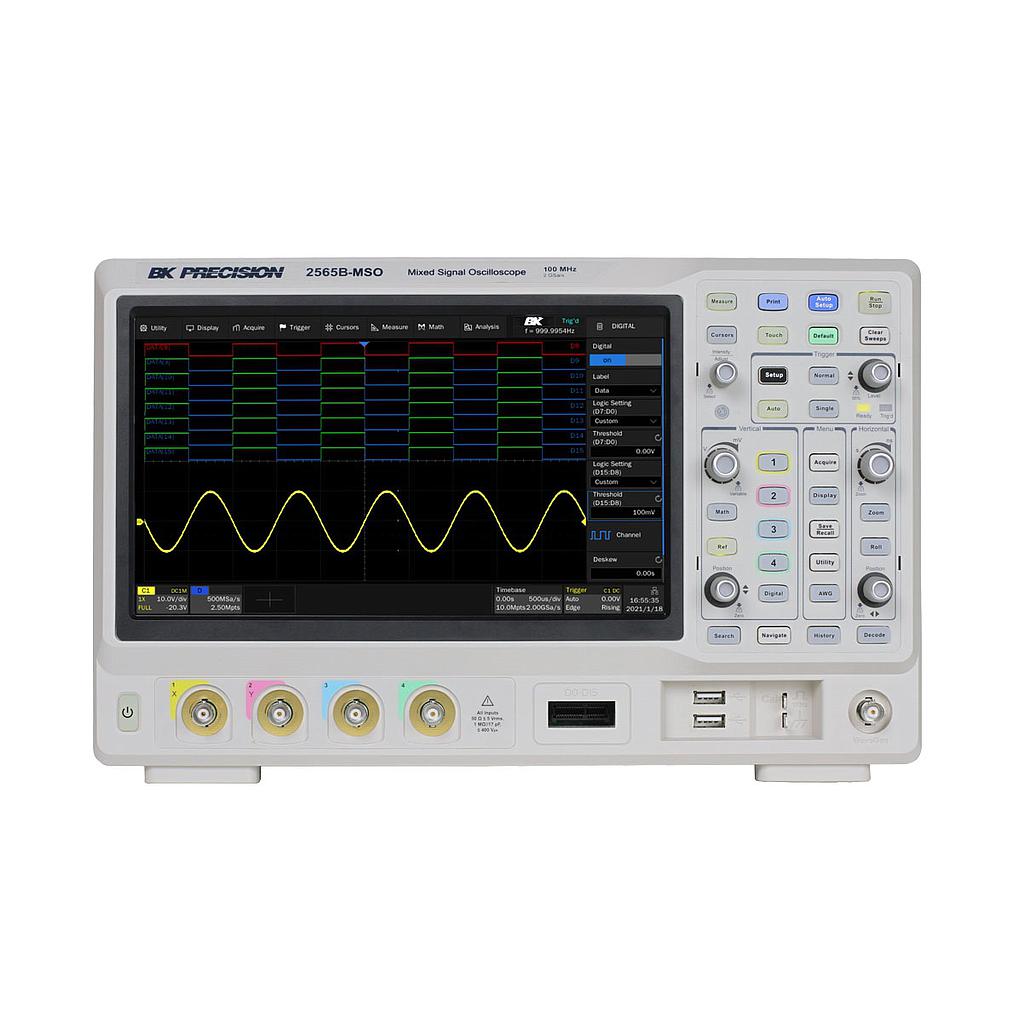

Performance Characteristics:
Bandwidth: 200 MHz
Rise Time: 1.7 ns
Input Channels: 4 analog channels + EXT; 16 digital channels for MSO
Sample Rate: 2 GSa/s (interleaving mode); 1 GSa/s (non-interleaving mode)
Vertical System:
Input Coupling: DC, AC, GND
Input Sensitivity:
1 MΩ: 500 µV/div to 10 V/div;
50 Ω: 500 µV/div to 1 V/div
Input Impedance: 1 MΩ ± 2% or 17 pF ± 2pF; 50 Ω: 50 Ω ± 1%
Max Input Voltage: 1 MΩ: ≤ 400 Vpk (DC + AC), DC to 10 kHz; 50 Ω: ≤ 5 Vrms, ± 10 Vpk
Horizontal System:
Time Base Range: 1 ns/div to 1000 s/div
Time Base Accuracy: ± 1 ppm; ± 1 ppm after first year; ± 3.5 ppm after 10 years
Display Characteristics:
Display: 10.1” TFT-LCD Capacitive touch screen
Resolution: 1024 x 600
Language: English, Spanish, Traditional and Simplified Chinese, French, Japanese, German, Russian, Italian, Portuguese
I/O:
Front Panel: USB 2.0 host x2, Probe compensation
Rear Panel:
USB 2.0 device, LAN: 100 Mbps
EXT trigger: EXT ≤ 1.5 Vrms, EXT/5 ≤ 7.5 Vrms
Aux Out: TRIG OUT 3.3 V LVCMOS; PASS/FAIL OUT 3.3 V TTL
General:
Dimensions (W x H x D): 13.9" x 8.8" x 4.4" (352 x 224 x 111 mm)
Weight: 8.6 lbs (3.9 kg)
Included Accessories: Four passive probes, power cord, USB Cable, Certificate of Calibration
Optional Accessories: Rack mount kit (RK2560B)
