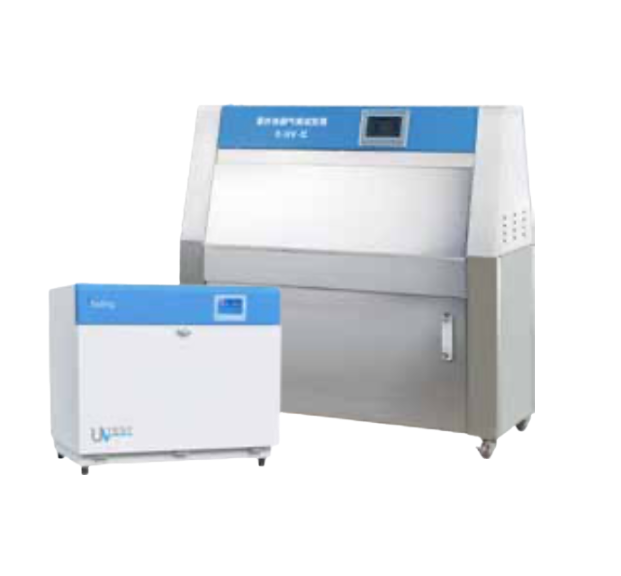

Bluepard B-UV-II UV Test Chamber (220V 50Hz; 2000W)

Temperature Range

Light cycle: 45°C~ 80°C

Condensation cycle: 40°C~ 60°C

Light source

Type: UVA or UVB fluorescent ultraviolet lamp

Power: 40W/pc, total 8pcs

Wavelength range: Standard with UVA@340nm; Optional@351nm or UVB@313nm

Irradiance: Irradiance automatic control

Calibration function: have

Spraying function: 12-hole sample spraying device

Sample shelf size: 48 pcs standard sample test shelf(75x150mm)

Center distance between sample and lamp: 50mm±3mm

Exterior dimension (WxDxH,mm): 1200x450x1500

Cycle mode: Dark, light, spray, condensate set multi-cycle automatic control

Light control: Irradiance automatic monitoring and control

Electrical requirement: 220V 50Hz

Power consumption: 2000W
