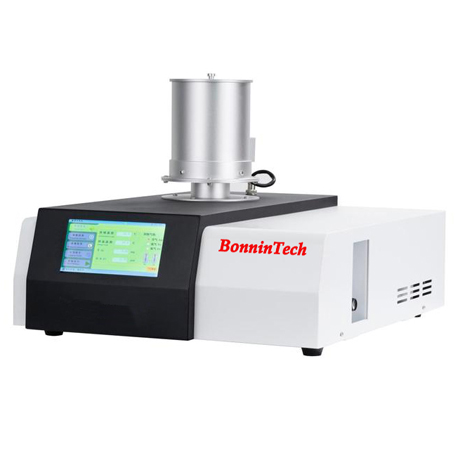

Bonnin STA300 Synchronous thermal analyzer (0 ~ 600 MW)

Temperature range: room temperature ~1550℃

Temperature resolution: 0.01℃

Temperature fluctuation: 0.1℃

Heating rate: 0.1~100℃/min

Temperature control mode: PID algorithm control, heating, constant temperature and cooling.

Constant temperature time: 0~300min.

Measuring range of balance: 0.01mg~3g, which can be extended to 30 g.

Program control to realize multi-stage temperature control.

DSC range: 0 ~ 600 MW

DSC resolution: 0.001mW

Accuracy of weighing system: 0.01mg

Constant temperature time: 0~300min.

Display mode: 24bit color, 7-inch LCD touch screen display.

Atmosphere device: built-in gas flowmeter, including two-way gas switching and flow control.

Atmosphere: inert, oxidizing, reducing, static and dynamic.

Software: Intelligent software can automatically record TG curves for data processing and print experimental reports.

Curve scanning: heating scanning and cooling scanning.

power supply: the power supply and the weighing system are shielded to avoid the interference of alternating current (AC220V 50Hz).

Operating software: it can switch the application switching test meeting the requirements of differential display, differential heating, thermogravimetry and synchronous heating.

Communication interface: USB communication.
