Socket Orientation: Center Back Mounted
Connection: Face seal swivel female
Pressure Ranges: Vacuum to 4.000 PSI (276 bar). Metric also available (See Ranges Tables)
Accuracy: 1% of full scale
Helium Leak Check: 4 x 10⁻⁹ inboard std. cc/sec
Proof Pressure: 110%
Burst Pressure: 400%
Operating (Ambient): 0° to 160°F (-18° to 71°C)
Compensating: 20° to 135°F (-7° to 57°C)
Storage: -20° to 135°F (-29° to 79°C)
Cleaning: Cleaned for oxygen service to ANSI B40.1 level IV specifications
Finish: 32 Ra standard
Safety Relief: Unrestricted rear blow-out plug
Connections: Face-seal male, face-seal swivel male, face-seal swivel female and 1/4" NPT male

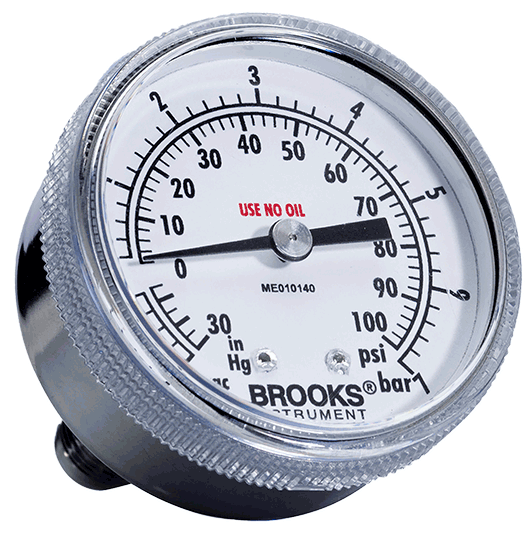

Dial: White with black marking; "Use No Oil" is red
Approximate Shipping Weight: 0.5 lbs (0.23 kg)
For more details, see datasheet.
