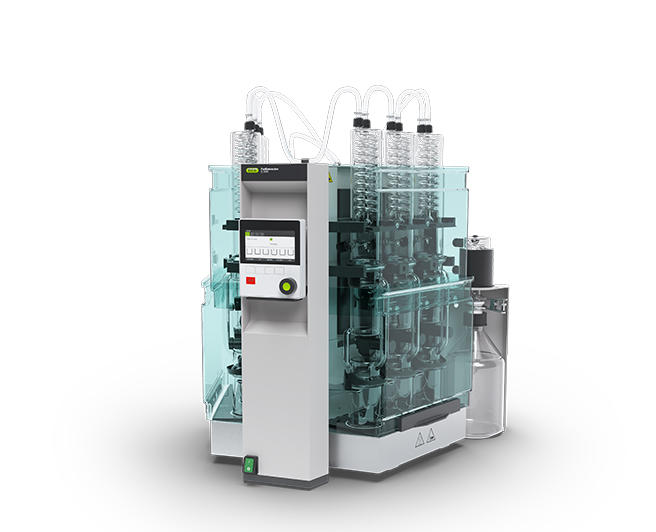

Buchi E-500 Fat Extractor

Power consumption: 1300 W

Connection voltage: 100 - 240 ± 10 % VAC

Frequency: 50 / 60 Hz

Dimensions (W x D x H): 638 x 595 x 742 mm

Minimum clearance (W x D): 200 mm

Minimum clearance (H): 500 mm

Weight (without glassware): 41.8 kg

Total heating power (rated): 600 W

Total heating power (maximum): 1200 W

Hose connection: 6 / 9 mm

Minimum water flow 100 mL/min

Allowed water pressure: 6 bar

Inlet cooling medium temperature: 25 °C below the boiling point of the solvent

Number of extraction positions: 6

Solvent tank volume: 2 L

Language DE, EN, IT, ES, FR, JA, CN, PL, RU
