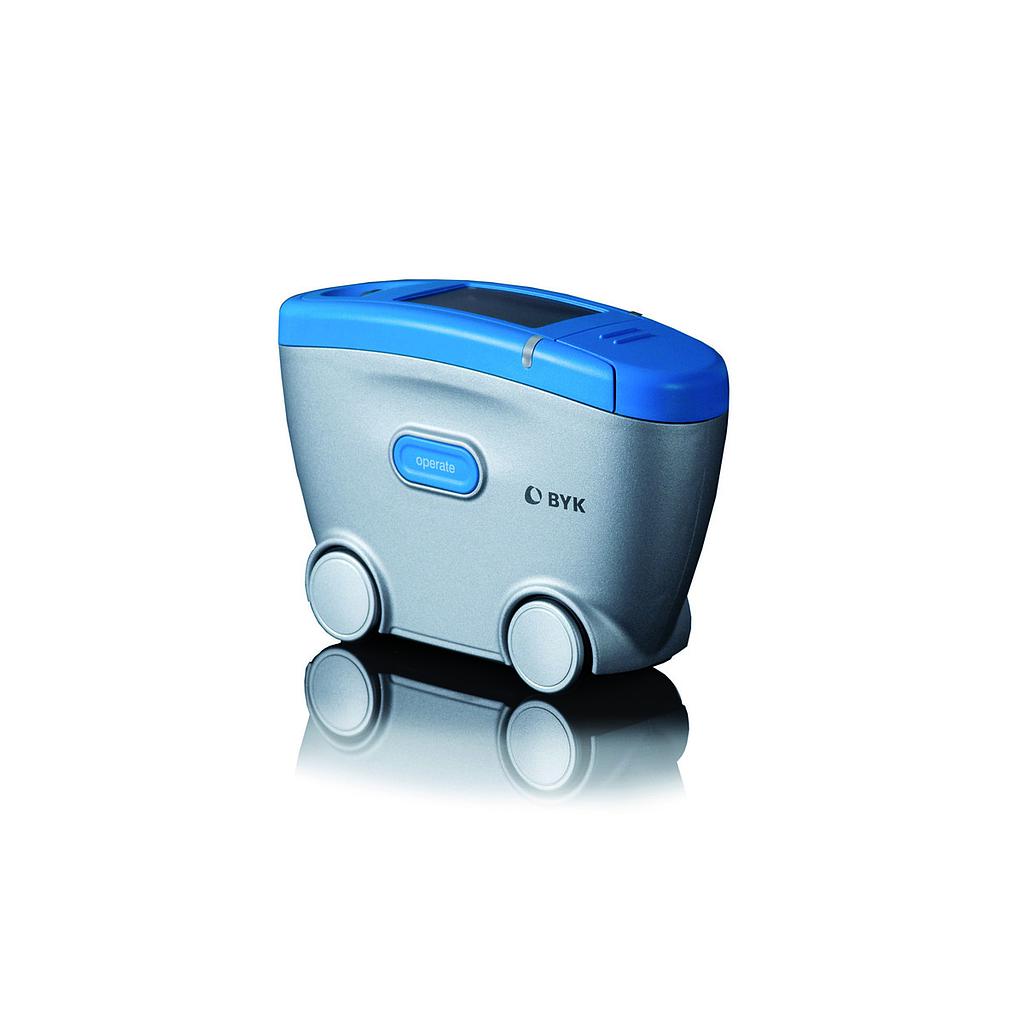

BYK cloud-runner Mottling Meter

Technical Specifications

Cloud Size:

Md: 6 to 13 mm

Me: 11 to 24 mm

Mf: 19 to 42 mm

Mg: 33 to 72 mm

Mh: 57 to 126 mm

Mi: 100 to 200 mm

Repeatability (Std. Dev.): 5% or > 0.5

Reproducibility (Std.Dev.): 8% or > 0.8

Object Curvature: radius > 500 mm

Scan Length: 10 to 100 cm, selectable in 1cm steps

Resolution: 25 points/cm

Light Source: White Power LED

General:

Measuring time: < 4 sec.

Memory: 1000 readings

Interface: USB port

Languages: English French German Italian Japanese Portuguese Spanish

Power supply: rechargeable battery pack, approx. 1500 readings

Weight: 0.65 kg

Operating temperature: 10 - 40 °C

Storing temperature: 0 - 60 °C

Relative humidity: up to 85% at 35°C (95°F), non-condensing

Dimensions (L x W x H): 15 x 5.5 x 11 cm
