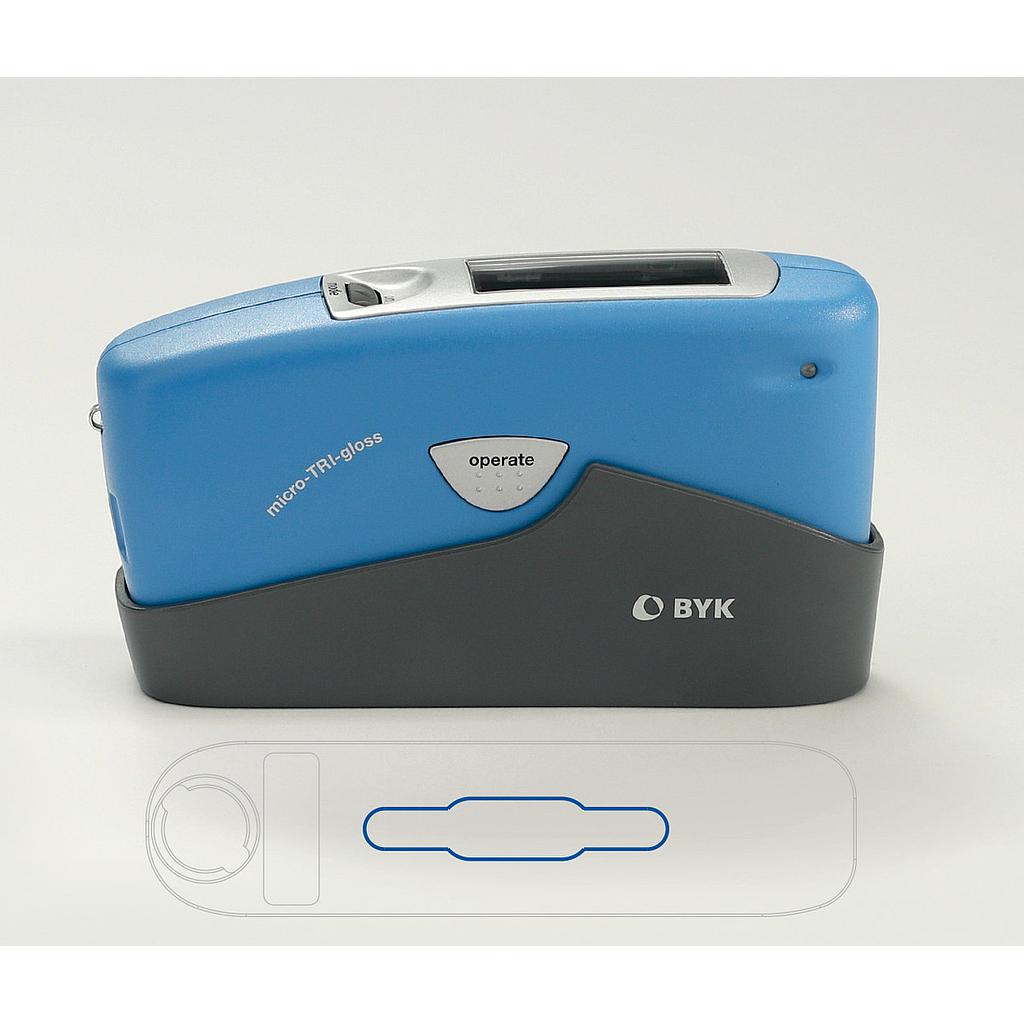

BYK micro-TRI-gloss Three angle gloss meter (20°, 60° and 85°)

Technical Specifications

Geometry: 20°, 60°, 85°

Application: universal

Measuring Area:

20°: 10 x 10 mm

60°: 9 x 15 mm

85°: 5 x 38 mm

Measuring Area:

20°: 0.4 x 0.4 in

60°: 0.35 x 0.6 in

85°: 0.2 x 1.5 in

Gloss Measurement

Measuring Range:

20°: 0 - 2000 GU

60°: 0 - 1000 GU

85°: 0 - 160 GU

Repeatability:

0 - 100 GU: ± 0.2 GU

100 - 2000 GU: ± 0.2 %

Reproducibility:

0 - 100 GU: ± 0.5 GU

100 - 2000 GU: ± 0.5 %

Spectral sensitivity: CIE standard observer for illuminant CIE-C

General

Measuring time: 0.5 seconds / geometry

Memory: 999 readings with date and time

Interface: USB

Languages: English French German Italian Spanish

Power supply: one 1.5V AA Alkaline Battery, or via USB-port

Battery Capacity: 4,000 readings

Weight: 0.4 kg

Weight: 0.9 lb

Operating temperature: 15 - 40 °C

Operating temperature: 60 - 104 °F

Relative humidity:up to 85 %, non-condensing

Dimensions: L x W x H: 15.5 x 4.8 x 7.3 cm

Dimensions: L x W x H: 6.1 x 1.9 x 2.9 in

Delivery Content

Glossmeter

Calibration holder TRI (4447)

USB-cable micro-gloss (4405)

Software with 2 licenses for download:

smart-lab Gloss (4866) or smart-process Gloss (4867)

Battery

Traceable certificate

Manual

Carrying case
