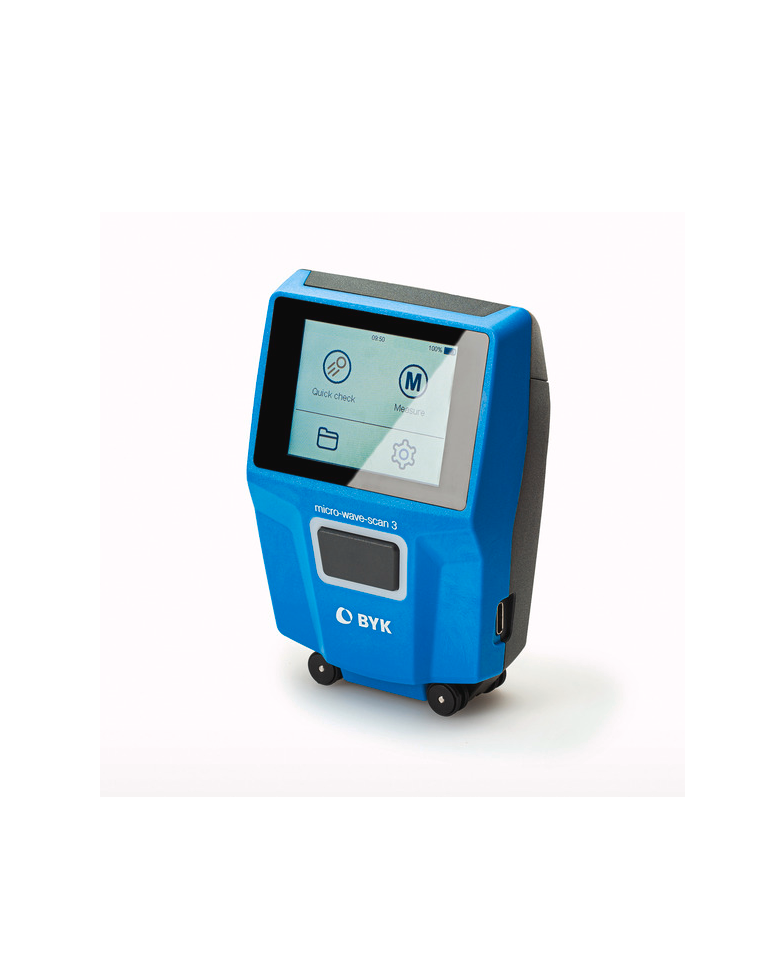

BYK micro-wave-scan 3 Orange Peel Meter

Application: High Gloss Surfaces (du < 40, linear range)

Structure Spectrum

du: < 0.1 mm

Wa: 0.1 to 0.3 mm

Wb: 0.3 to 1 mm

Wc: 1 to 3 mm

Wd: 3 to 10 mm

Repeatability (Std. Dev.): 8% or > 0.8

Reproducibility (Std.Dev.): 12% or > 1.2

Object Curvature

radius > 300 mm

Scan Length: 20 cm (du, Wa...Wd, LW, SW, DOI) 10 cm (du, Wa...Wd, LW, SW, DOI) 5 cm (du, Wa...Wd, LW, SW, DOI) 0 cm (du, Wa, Wb, DOI)

Resolution: 375 points/cm

Min. Sample Size: 25 mm x 40 mm

Measurement Area: 4 mm x scan length

Light Source: Laser diode, LED

Laser Energy: < 1 mW (Laser class 2)

General

Memory: 10,000 readings in 1000 test series

Interface: USB port, WiFi optionally

Languages: English French German Italian Spanish Chinese Japanese Russian

Power supply: rechargeable Li-Ion battery pack, up to 1000 readings depending on usage

Weight: 0.32 kg

Operating temperature: 0 - 40 °C

Storing temperature: 0 - 60 °C

Relative humidity: up to 85% at 35°C (95°F), non-condensing

Dimensions: L x W x H: 8.4 x 4.4 x 11.5 cm
