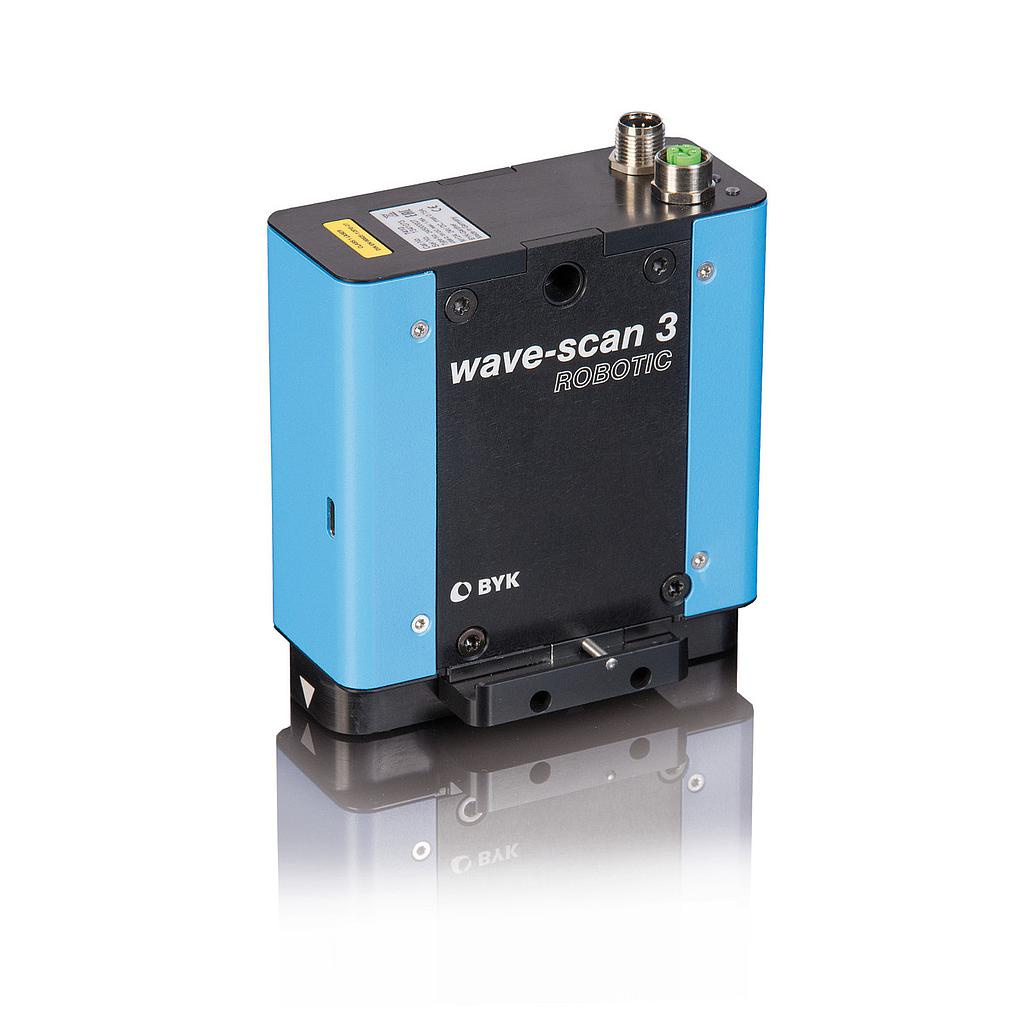

BYK wave-scan 3 ROBOTIC Orange peel meter (High gloss surfaces, du < 40)

Application: High gloss surfaces, du < 40, linear range

Structure Spectrum:

du: < 0.1 mm

Wa: 0.1 to 0.3 mm

Wb: 0.3 to 1 mm

Wc: 1 to 3 mm

Wd: 3 to 10 mm

We: 10 to 30 mm

Repeatability (Std. Dev.): 4% or > 0.4

Reproducibility (Std.Dev.): 6% or > 0.6

Object Curvature: radius > 500 mm

Scan Length: 5 / 10 / 20 cm

Resolution: 375 Points/cm

Min. Sample Size: 35 mm x 150 mm

Distance to Surface: 15 ± 2 mm

Light Source: Laser diode, LED

Laser Energy: < 1 mW (Laser class 1)

Angle to Surface: perpendicular ± 2°

Scan Speed: 50 to 150 mm/sec

Robotic requirements: Vibration-free operation

General

Interface: LAN Ethernet and USB

Power supply: external power supply 9-24 VDC, max. 0.75 A

Weight: 0.55 kg

Weight: 1.2 lb

Operating temperature: 10 - 40 °C

Storing temperature: 0 - 60 °C

Operating temperature: 50 - 104 °F

Storing temperature: 32 - 140 °F

Relative humidity: up to 85 % at 35 °C (95 °F) non-condensing

Dimensions: L x W x H: 11.2 x 6 x 13.1 cm

Dimensions: L x W x H: 4.4 x 2.4 x 5.2 in

Delivery Content

Instrument

Software smart-process with 2 licences

Interface software smart-robotic

Protective Cap

Checking tile (4833)

Set power cable (8m torsion resistant, 10m drag chain cable, 20m oil

resistant)

Set LAN cable (8m torsion resistant, 10m drag chain cable, 20m oil

resistant)

Mounting Kit (hex key, screws, technical drawings)

Manual

USB-Stick with license

Carrying case

2-day training

Certificate

Manual

Video
