Direct access to our certified experts
Range of environmental test conditions
Conventional salt spray/ salt fog
Dwell and ramp functions
High humidity, 98% RH, at constant or cyclic temperature
Air purge cycles
Forced air drying
Dry heat – ambient to 70°C
Ambient to 55°C +/- 1 °C.
External dimension
L: 1000 mm
W: 830 mm
H: 1040 mm
Internal dimension
I: 610 mm
W: 510 mm
H1: 455 mm
H2: 625 mm
Panel capacity: 80
Power Supply Amp: 16
Style: Floormounted
Compressed air:
Type: Clean, dry, oil free
Presure: 2 ~ 4 bar (30 ~ 60 psi)
Flow: 3.5 cfm at 15 psi
Connection: 10mm ID plastic pipe
Power supply: 230V, 50/60Hz Single-phase, other voltage on request.
Water type: De-ionzed or mains water below 50 mg/litre TDS
Water pressure: 2 - 4 bar (30 to 60 psi)
Water connection: 10mm ID plastic pipe
Drain: 36 mm outside diameter plastic pipe liquid waste
Reservoir with Lid: Supplied on castor with internal solution filter
500mm x 620 mmm x 540 mmm (LxWxH)
Scope of supply

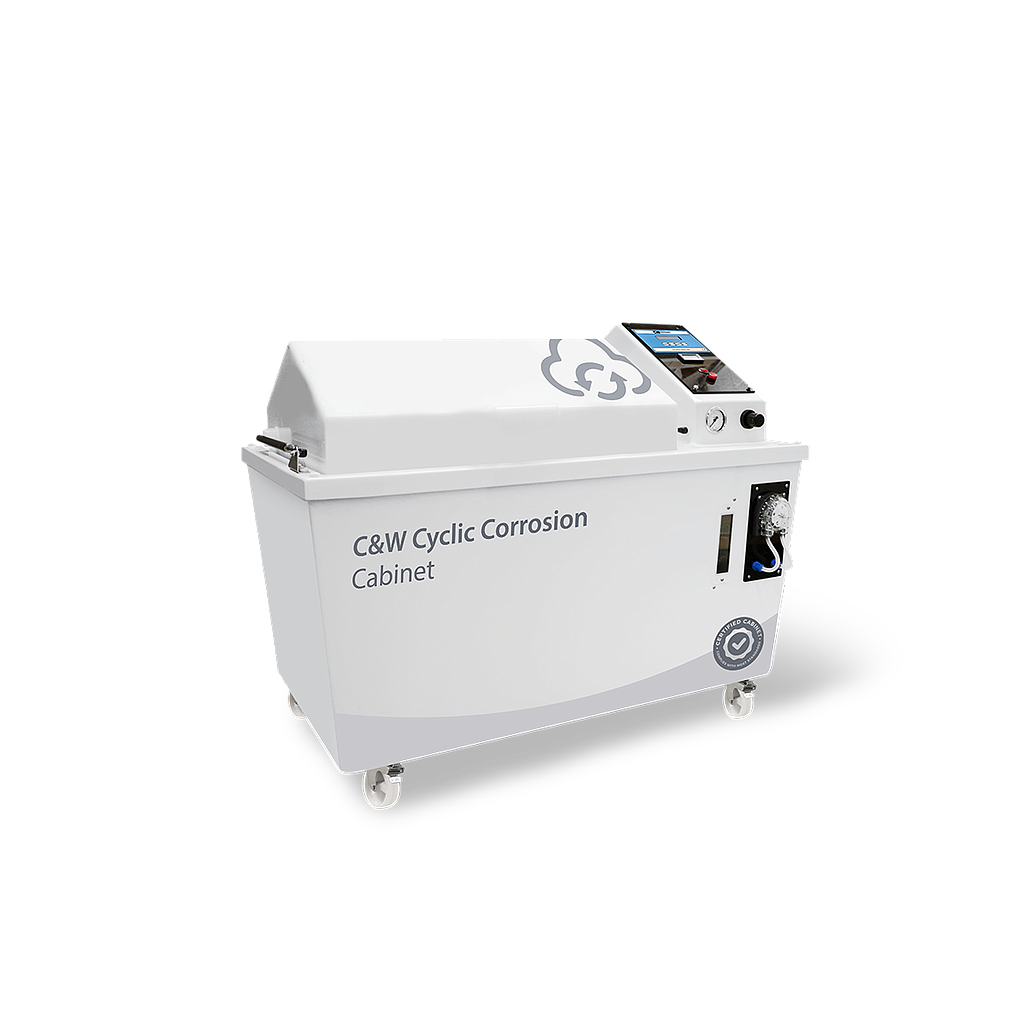

Each Cyclic Corrosion Cabinet comes with:
1 x CW4088 Installation kit
1 x CW4052 Annual kit
1 x CW4035 Set of Collection Vessel (2 funnel, 2 cylinder)
1 x 5kg Salt + Certificate
1 x CW5882 Adapter for pipe
1 x VF7101 Corrosion Handbook
