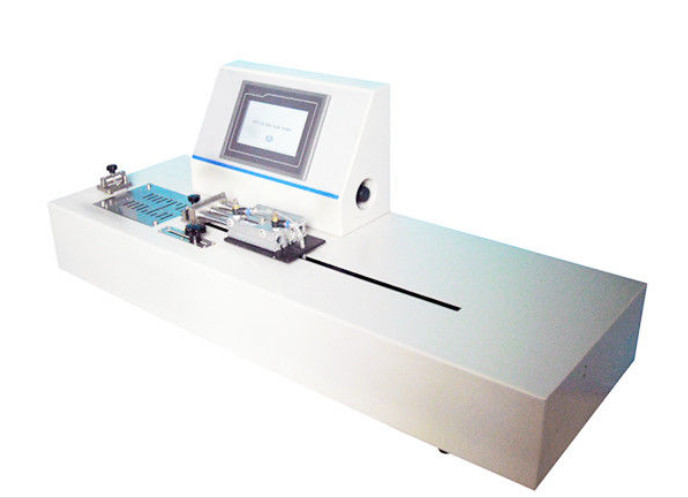

Aplication: Hot Tack Tester HTT-01measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature. Hot Tack tester is especially important for vertical form-fill-seal packaging.
Sealing Temperature: Ambient~250℃
Temp Accuracy: ±0.2℃
Heat Seal Dwell Time: 0.1~9999s
Hot Tack Dwell Time: 0.1~9999s
Sealing Pressure: 0.15MPa~0.7MPa
Sealing Jaws: 50mmx10mm Teflon Coated
Sealing Jaws Heating: Double Heating
Load Cell: 200N(Optional:30N50N100N500N)
Accuracy: 0.5 F.S.
Resolution: 0.01N
Stroke: 500mm
Gas Source: 0.5MPa~0.7MPa
Port Size: Ф6mm PU Hose
Dimensions: 1100mm(L)×390mm(W)×420(H)
Power: AC220V50H
