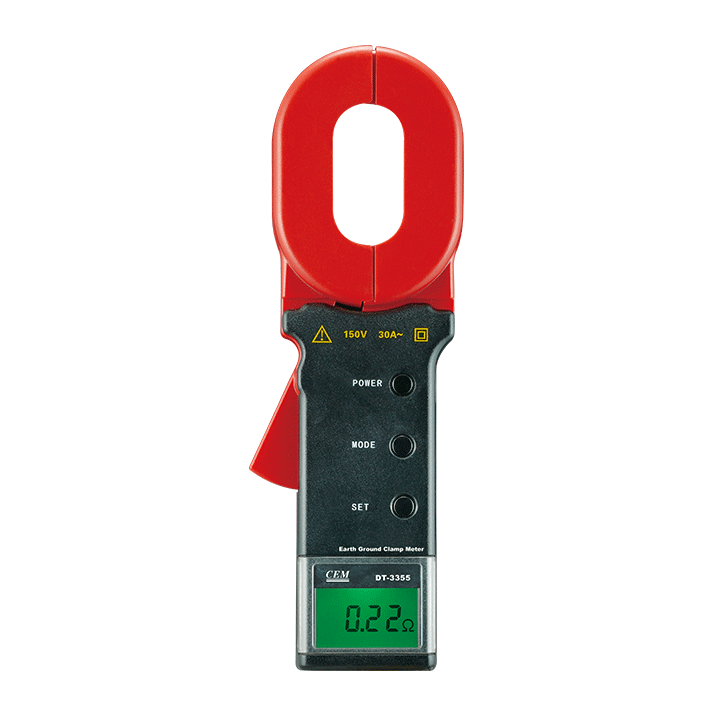

CEM DT-3355 Earth Ground Clamp Meter (0.01~1000Ω, 0~20A)
Function: Max Range - Max Resolution - Basic Accuracy
Resistance: 0.01~1000Ω ; 0.001Ω ; ±(1.0%+10d)
Current: 0 ~ 20 A ; 1mA ; ±(2.5%+2d)
Size (H x W x D): 288mm x 100mm x 95mm
Weight: 1154g (for long jaw); 1120g (for round jaw).
Accessories: Gift box with carrying case and 9V battery.
Datasheet
Features |
Large LCD display with backlight |
Span of Jaw: 28mm for a long jaw; 32mm for a round jaw: |
Protection Level: Double insulation |
Structural Feature: In the jaw way |
Range Shift: Automatic |
External Magnetic Field: 40A/m |
External Electric Field: 1V/m |
Single Measuring Time: 1 second |
Measurement Resistance Frequency: 1kHz |
Maximum Resistance Measurement Resolution: 0.001 Ω |
Resistance Measurement Range: 0.01-1000 Ω |
