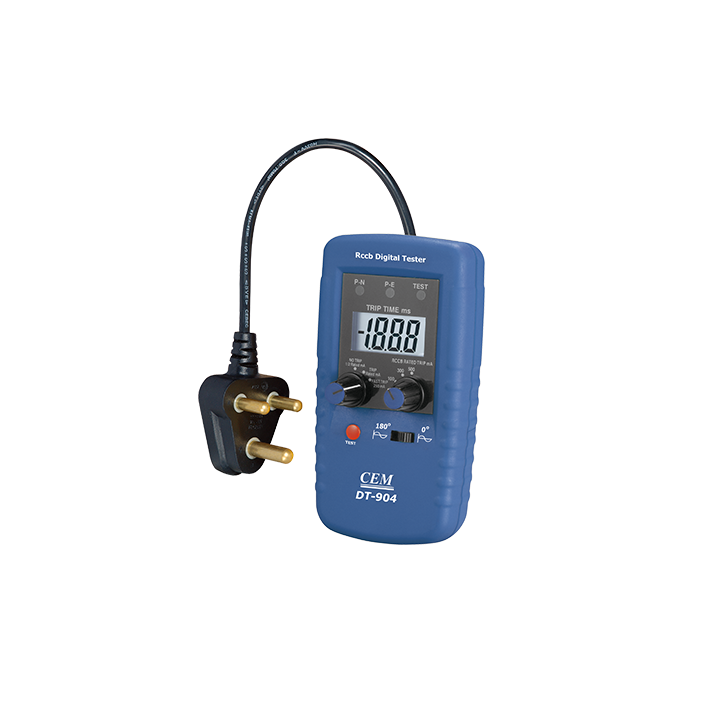

CEM DT-904 Digital RCD Tester (500mA)

Max Resolution - Accuracy

Trip current settings: 5mA, 10mA, 30mA, 100mA, 300mA, 500mA ; ___

Test Current (No Trip Test): 50% of circuit breaker trip current selected ; 2000mS ± 5%

Test Current (Trip Test): 100% of circuit breaker trip current selected ; 2000mS ± 5%

Test Current (Fast Trip Test): 250mA regardless of circuit breaker trip current selected ; 40mS ± 5%

Fault trip Time: 2000mS (40mS for Fast Trip) ; ±2%rdg ±3dgts

Resistance: 0.1kΩ ; ±1.0%rdg ±2dgts

Operating Voltage: 220V, 230V, 240V AC ± 10% ; ± 3%

Size (H x W x D): 128mm x 68mm x 30mm

Weight: 185g
