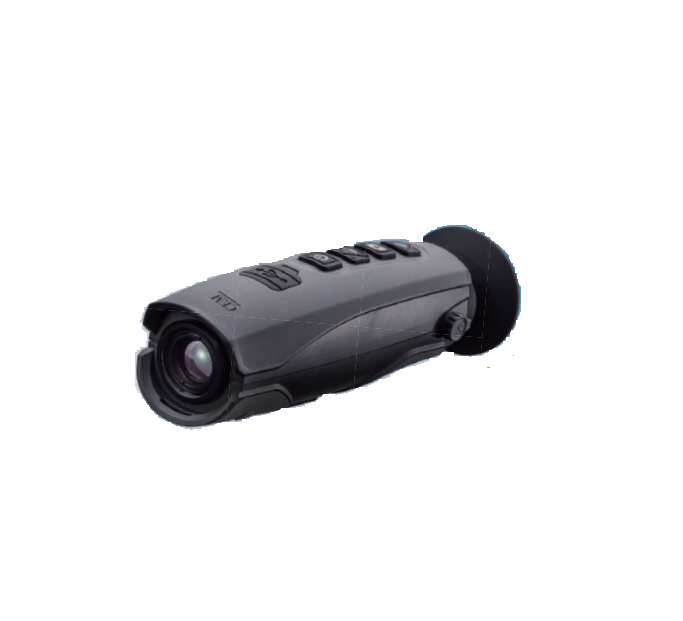

CEM T-70 Handheld Thermal Vision Monocular (8x8°,80x80)

Imaging and optical data

IR resolution: 80x80

Field of View (FOV): 8x8°

Spatial resolution: 1.79mrad (IFOV)

Thermal sensitivity/NETD: < 0.05°C @ +30°C (+86°F) / 50 mK

Image frequency: 50Hz

Len: 19mm F1.0

Image presentation

Display: 1.44" 640x480 EVF

Color palettes: IRON/GREY/ HOT RED/ COLD BLUE

Set-up

Laser/floodlight: <class2/white LED floodlight

Set-up commands: Local adaptation of units, language, date and time formats, information of camera

Language selection: English, Chinese, French, German, Spanish

Storage of videos/images

Storage media: 4Gbytes eMMC internal

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card < 60 minutes

Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures

Data communication interfaces

USB interface:Data transform between camera and PC; Remote control, live video

Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control, live video

Size (HxWxD): 48 x 50x 180mm

Weight: 370g

Accessories: Gift box.
