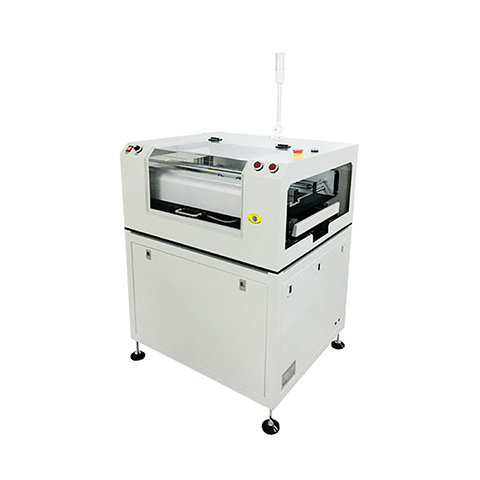

Censtar AC-350W-N PCB Telescopic Conveyor

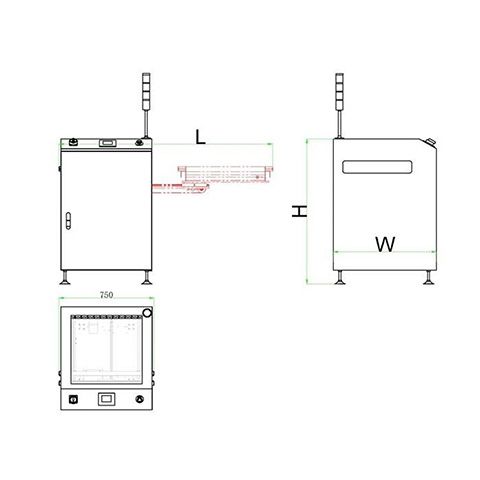

Dimension(mm): 1500*650*1050

PCB size(mm): 50*50-445*350

Quantity of rail: Single rail

Belt type: Oblate belt

Convey speed: 0.5-20m/min or specify

Power supply: AC 220V ; single phase

Power: Max 100VA

Transport height: 900±20(or custimzie)

PCB direction: L-R or R-L

Weight: 200kg

This equipment is used at the junction of the aisle of the production line to play the role of transmission and channel .

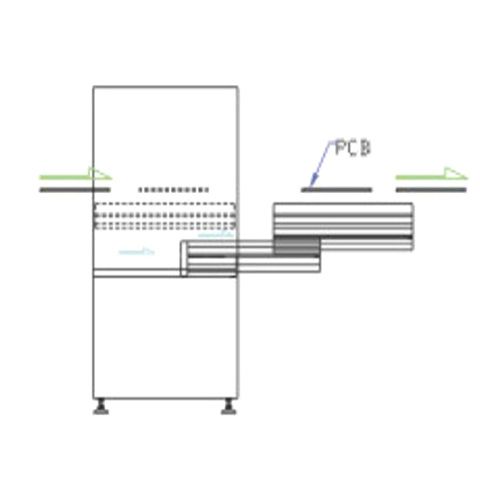

1.Lowering and lifting of gate conveyor (controlled by push botton);

2.650mm passage way or specify;

3.Parallel and smooth width adjustment(leadscrew);

4.Safety sensor installed to enhance safety;

5.With SMEMA signal.
