Dimension: 500*1046*900mm
PCB size: 50*50-330*250mm
Industrial control: Industrial control board
Quantity of rail: Dual rail
Fixed conveyor mode: 1 and 4 rail fixed,2 and 3 adjustable
Adjustment mode: Manually
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Conveyor speed: 0.5-20m/min or specify
Transport height: 900±20mm(or custimzie)
Power supply: 220V ; single phase
Power: Max 100VA
Transport direction: L-R or R-L
Inspect/ Auto Mode: Yes
Variable speed control: Yes
CE: Yes
PLC: No
SMEMA: No
Weight: 80kg

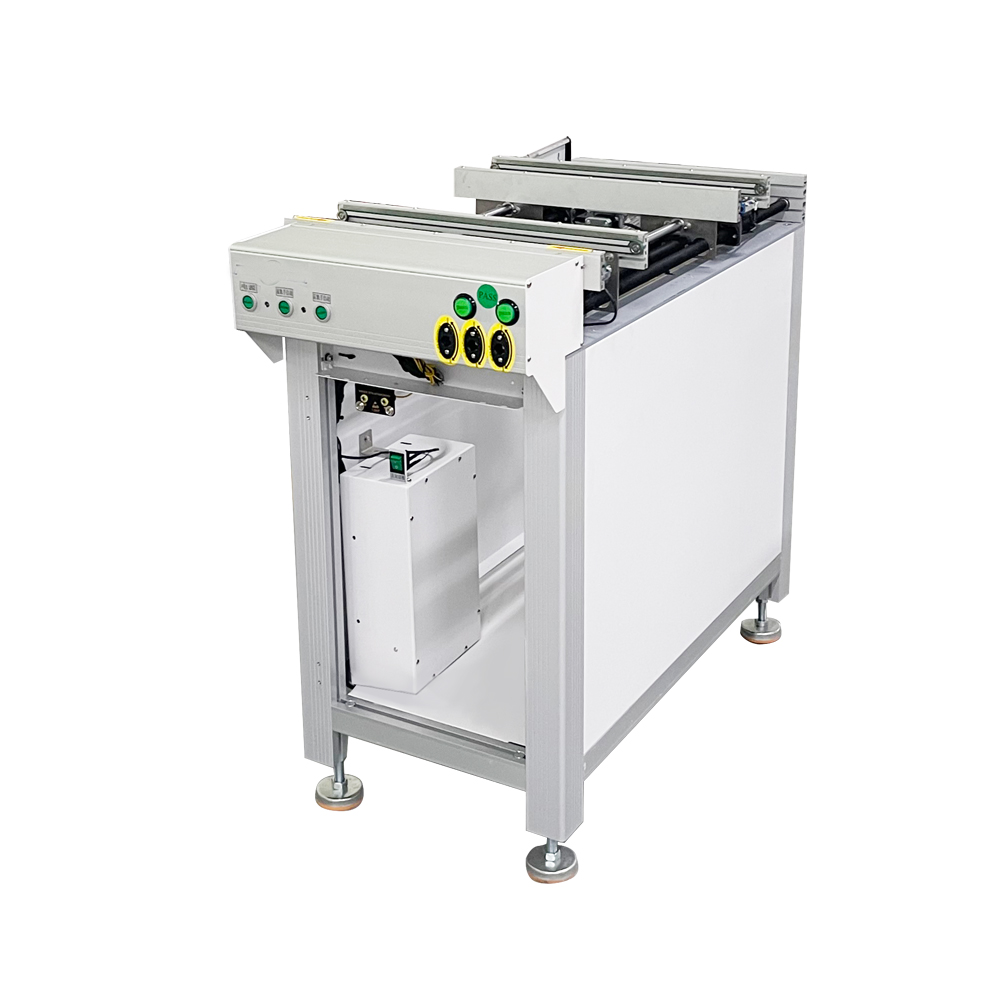

The PCB Conveyor is used in the PCB assembly line when frequent visual inspection of PCB’s is required, can be used as an Inspection conveyor or a Linking conveyor.
Features
1.Modular design
2.Weighted design improves stability
3. Inspection mode and automatic mode
4.Inducing multi-zone position accuracy
5.Ergonomic design, make arms rest
6.Custom machine length according to customer's requirement
7.Order the number of multi-zone upon request
8.Variable speed control
9.Compatible SMEMA interface
Options:
SMEMA, PLC, LED lights, nti-dust Covers, Touch screen, Support for Monitor, With bottom cabinet, Anti-static glass dust cover , Cooling cover, Sensor, Size customization
