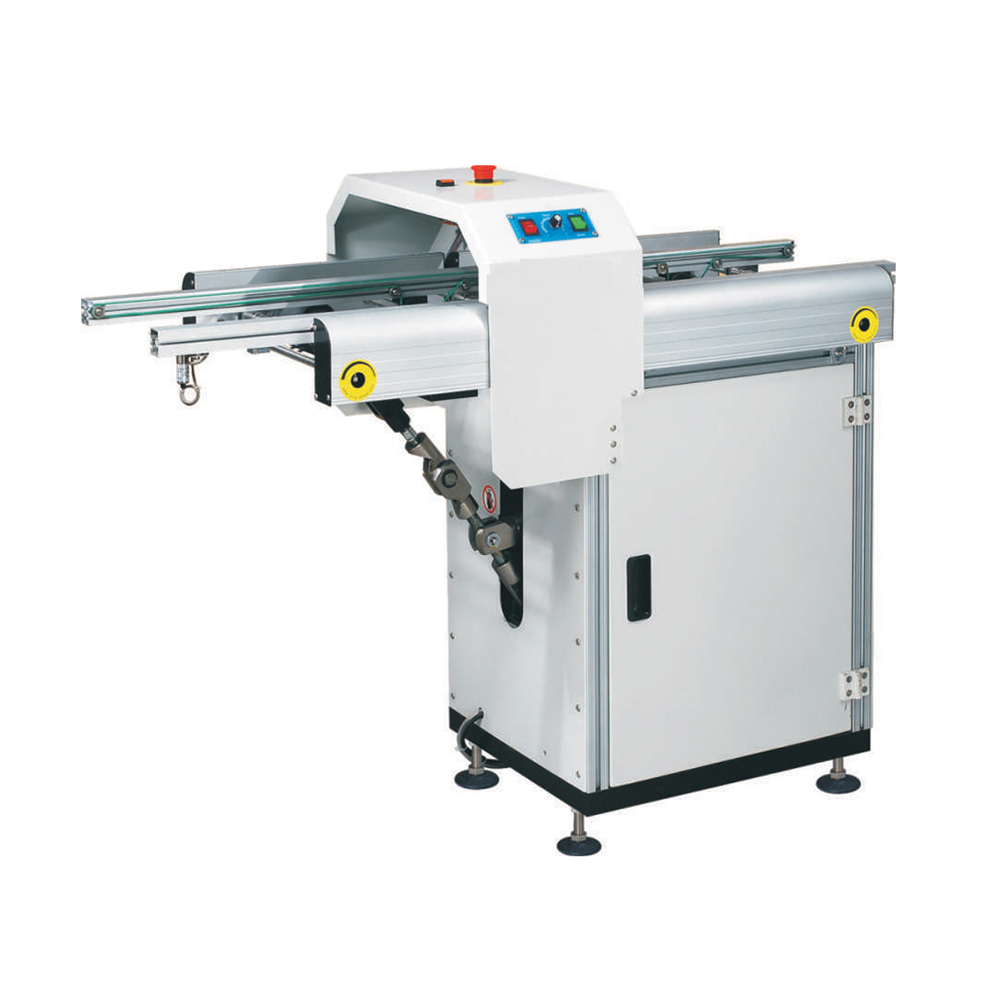

Censtar LC-400W-N Lowering Gate PCB Conveyor

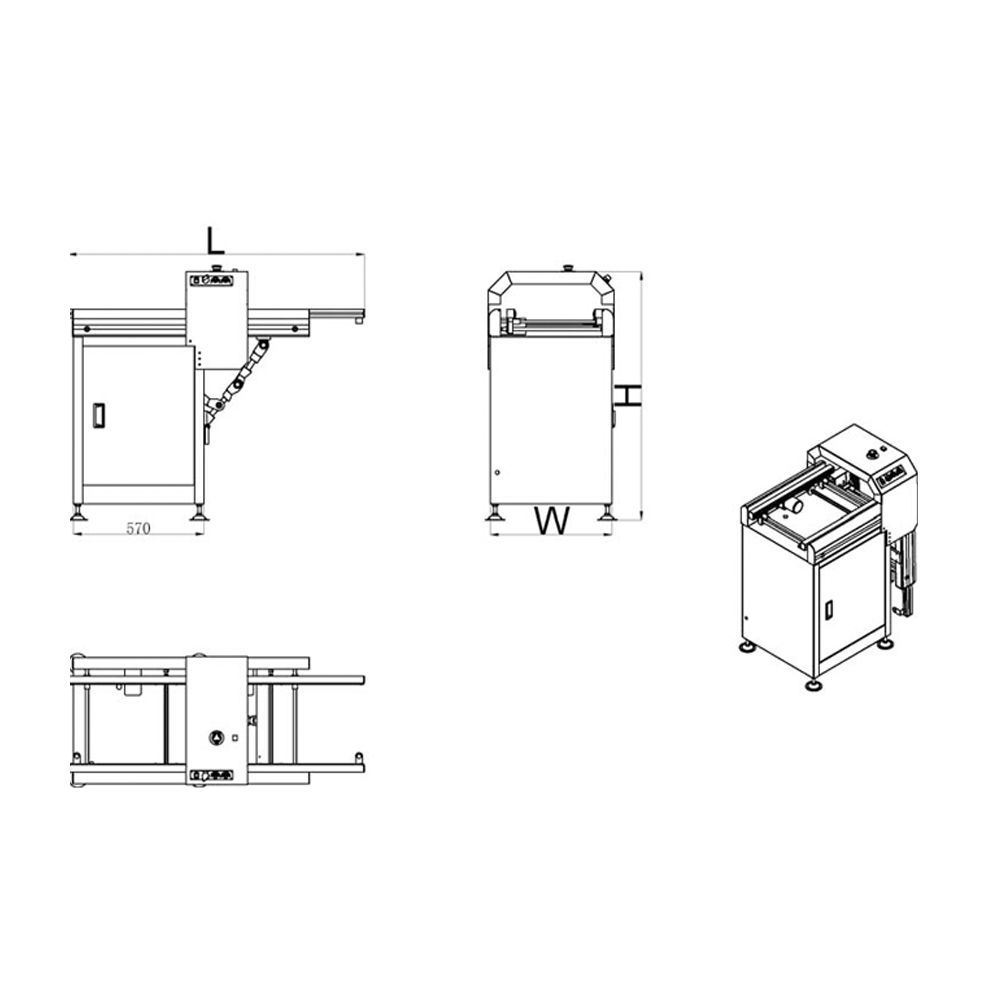

Dimension(L*W*H): 1300*570*1050mm

PCB size（L*W): 50*50-445*400mm

Quantity of rail: Single rail

Belt type: 4mm flat belt

Load bearing: 2kg/PCB

Conveyor speed: 0.5-20m/min or specify

Transport height: 900±20mm(or custimzie)

Power supply: 220V ; single phase

Power: Max 100VA

Air prssure: 4-6bar

Air consumption: 48L/min max

Transport direction: L-R or R-L

CE: Yes

PLC: No

SMEMA: No

Weight: 180kg

The Lowering Gate Conveyor is used when a passage way is required in a production line.

Features

1.Lowering and lifting of gate conveyor (controlled by push botton);

2.650mm passage way or specify;

3.Parallel and smooth width adjustment(leadscrew);

4.Safety sensor installed to enhance safety;

5.With SMEMA signal.
