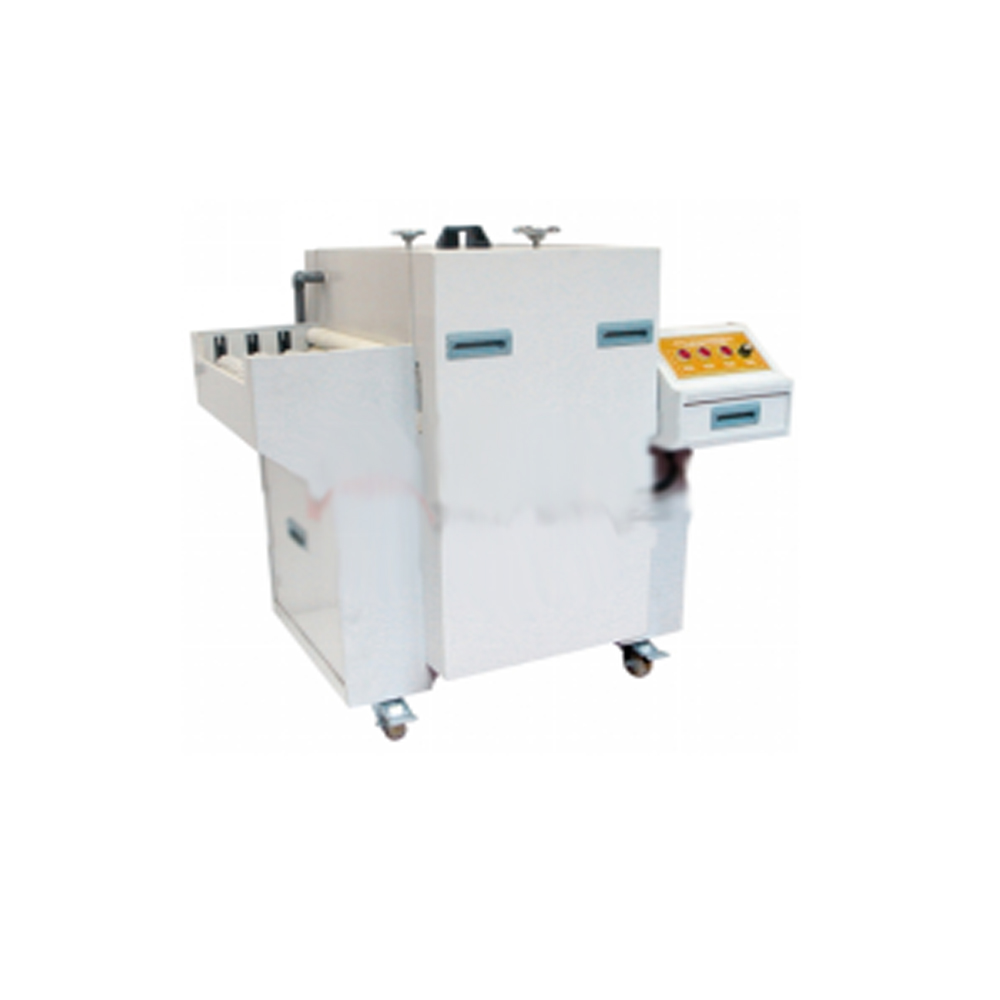

Censtar P300 PCB Deburring Machine

1.Processing width: 20mm-600mm

2.Processing thickness: 0.6mm-6mm

3.Throwing brush type: Nylon brush with abrasive

4.Brush throwing motor: 1.1kw

5.Transmission speed: 0.2-6M/min speed adjustable

6.Transmission motor: 400w DC

7.The power of the whole machine is 1.5kw

8.Tap water volume: 15-20 per minute

9.Overall appearance: (length x width x height) 1200x1050x1100mm

10. This machine is suitable for removing oil stains and oxide layers on the surface of printed boards. It is mainly used for polishing the surface of PCBs. It can also be used for surface polishing of stainless steel plates, aluminum plates, copper plates and other metals.

For pad PCB polishing and deburring

Features

Production process: feeding - brushing - spray washing - drying - discharging
