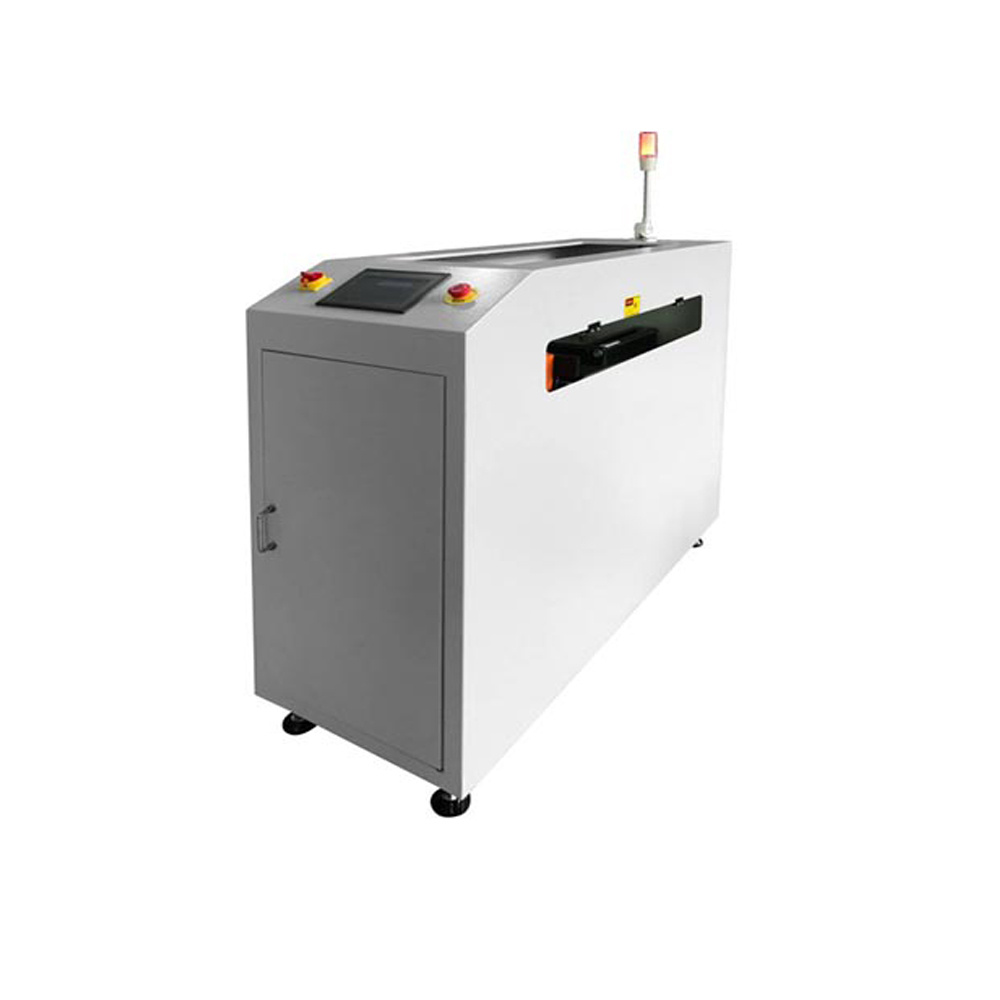

Censtar PT-1200M-FABN PCB Shuttle Conveyor

Dimension(L*W*H):500*1350*1050mm

PCB size(L*W):50*50-460*350mm

Quantity of rail:Single rail

Belt type:4mm flat belt

Load bearing:2kg/PCB

Convey speed:0.5-20m/min or specify

Transport height:900±20mm(or custimzie)

Cycle time:Depends on traversing distance

Power supply:AC 220V±10V, 50/60HZ

Power:Max 250VA

Screen size:7 inch

PCB thickness :Minimum 0.4mm

Transport direction:L-R or R-L

CE: Yes

PLC:Yes

SMEMA:Yes

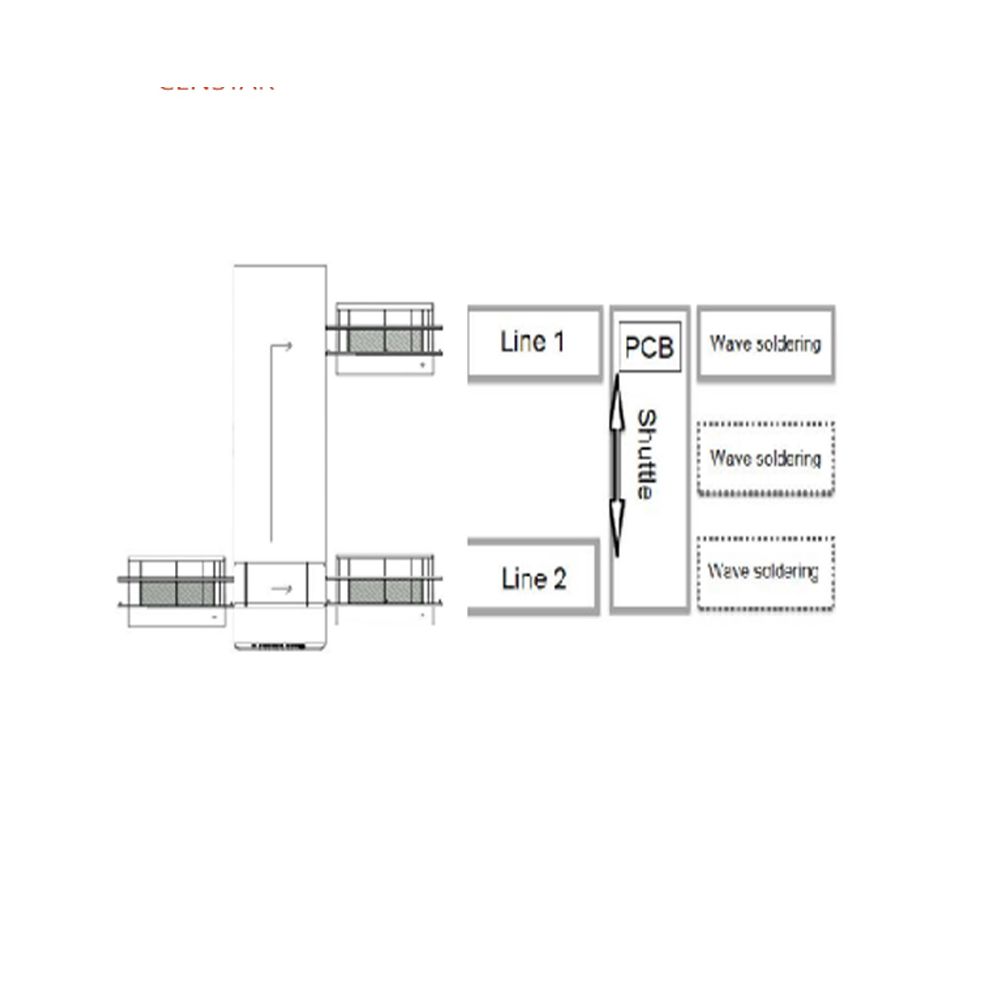

This equipment is used to adjust the running direction of the circuit board on the production line to different paths.

Features

1.PLC+LED touch screen control, easy to operate.

2.Full closed design ensures safety level of operation.

3.The cover can be opened to facilitate machine maintenance.

4.Smooth and precise width adjustment (leadscrew).

5.Smooth and accurate movement (stepping motor).

6.Minimize the transmission gap between conveyors.

7.With SMEMA signal.
