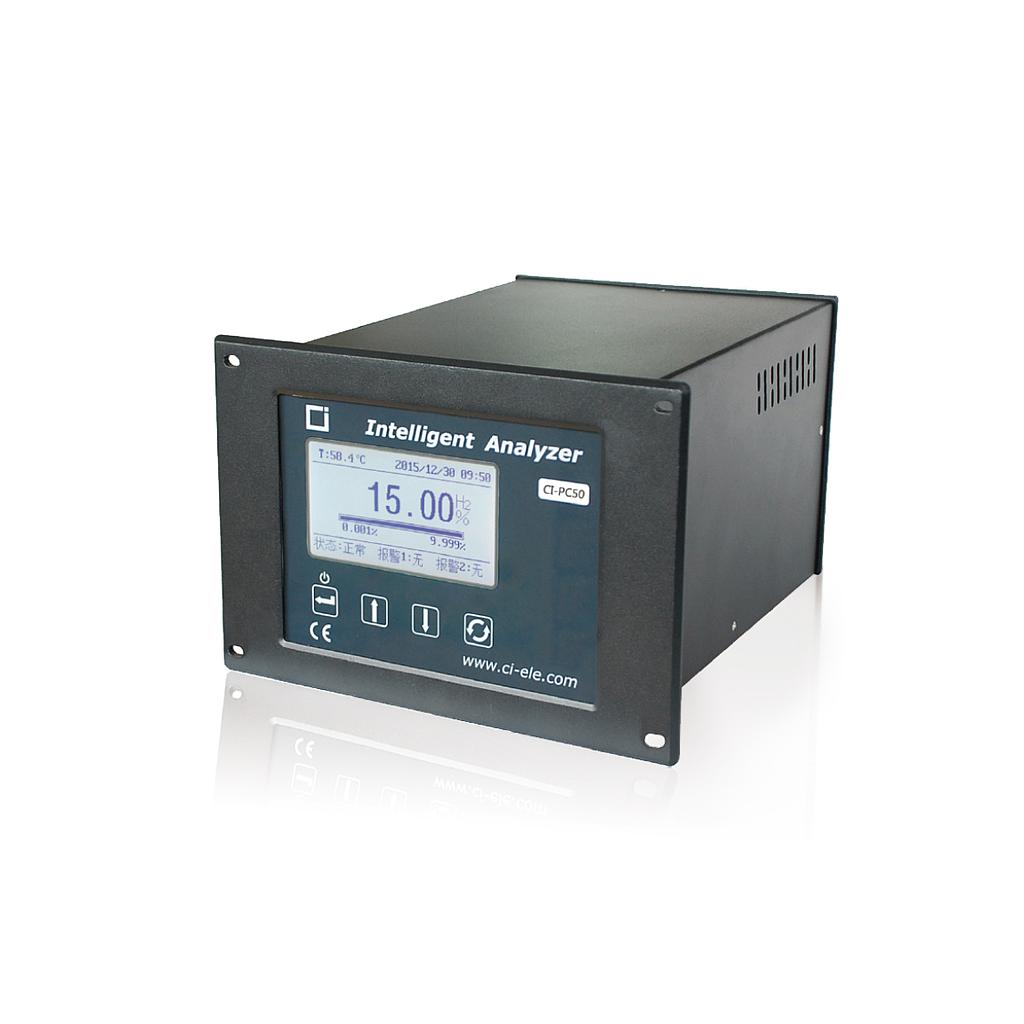

Chang AI CI-PC50 Thermal Conductivity Analyzer

Accuracy: +2%FS

Repeatability: +1% FS

Stability: +1% FS/7d

Response time: T90<10s

Background gases: N2,Ar,CO2,CH4,etc.(to be specified when ordering)

Measuring method: on-line

Power supply: 85-264VAC,50/60Hz

Power consumption of analyzer: less than 25VA

Communication: RS485(Standard Matching)/RS232(Optional Matching)

Working environment: temperature:-10~+45°C humidity: less than 90% RH

Analog output signal: 1group,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V,freely set mode. Group 6,relay contact capacity:24VDC,0.2A

Switch signal: 3 groups

External control: input signal:9-28VDC.

Purpose: External control calibration,sample gas status signal,etc.

Interference Compensation: Analog signals:2 groups. Input Signal Mode:4-20mA/0-20mA/0-1V/ 0-5V/0-10V/1-5V

Sample pressure: Purpose: Disturbance gas compensation atmospheric pressure+10%(outlet should be atmospheric pressure)

Life of sensor: more than 2 years (normal use)

Life of analyzer: more than 5 years (normal use)

Inlet and outlet Connections: 1/4-inch NPT Internal Thread,Stainless Steel Material (Standard 1/4-6 card-plastic joint)
