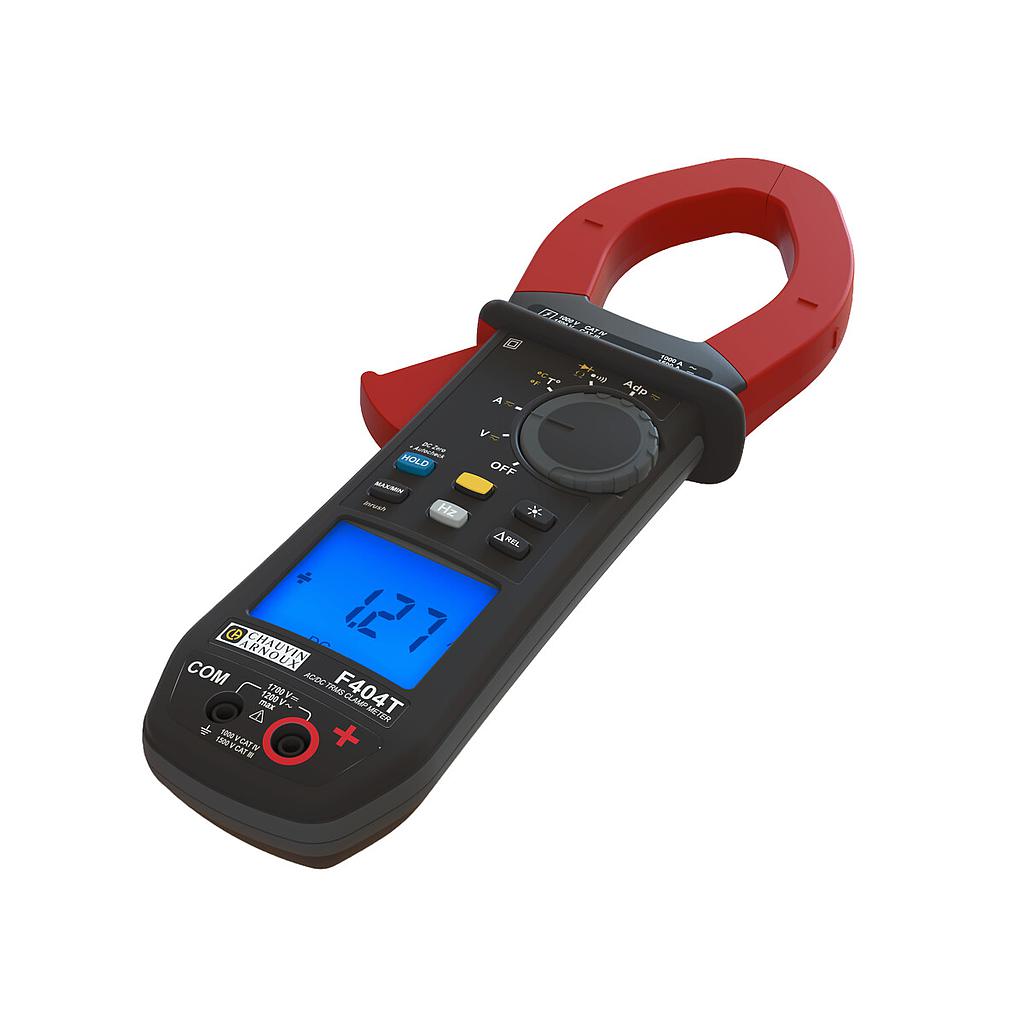

Chauvin Arnoux F404T AC/DC Photovoltaic Clamp Meter (1000AAC, 1500ADC, 1200VAC, 1700VDC)

Display

Screen type : Backlit LCD

Resolution : 10,000 points

Measurements displayed : 1

Acquisition method : 12-bit AC/DC TRMS

Automatic ranges (Autorange) : Yes

Automatic AC/DC detection : Yes (in V and A)

Current

AC range : 0.25 to 1000 A (1500 Apeak)

DC range : 0.25 to 1500 A

Best accuracy : 1% L ± 3 pts

Voltage

AC range : 0.15 to 1200 V (1700 Vpeak)

DC range : 0.15 to 1700 V

Best accuracy : 1% L ± 3 pts

Frequency

Current : 5.0 Hz to 2000 Hz

In voltage : 5.0 Hz to 20.00 kHz

Resistance

Range : 0.1 Ω to 99.99 kΩ

Open-circuit voltage : < 3.6 V

Measurement current : ≤ 550 μA

Audible continuity

Continuity threshold : Adjustable between 1 and 999 Ω

Diode test : Yes (semiconductor junction)

Temperature

Type K : -60.0 °C to +1000 °C

Type K : -76.0 °F to +1832 °F

Functions

Adapter function : Yes

Autocheck IDC : Yes

True Inrush : Overcurrent measurement / Motor start-up / Load change

Min / MAX : Yes / Yes (100 ms)

ΔREL (relative ΔX / differential ΔX/X) : Yes / Yes

Auto Power Off : Yes

Electrical Safety : IEC/EN 61010-2-032 : 1000 V CAT IV / 1500 V CAT III

Protection rating : IEC 60529 : IP54

Ø clamping diameter : 48 mm

Dimensions : 92 × 272 × 41 mm

Weight : 600 g

Power supply : 4 × 1.5 V AA
