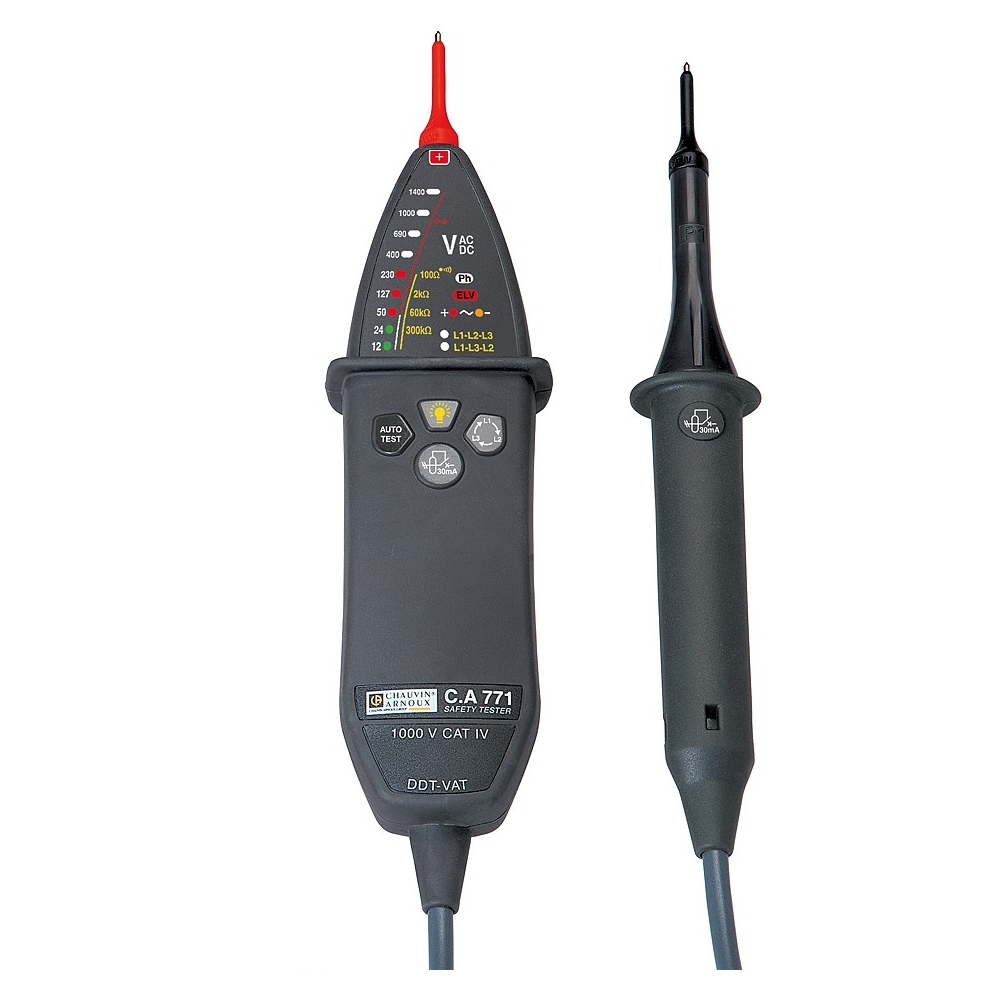

- Display: LEDs
- Voltage absence testing (VAT
+ Voltage: 12 Vac≤ U ≤ 1,000 Vac; 12 Vdc≤ U ≤ 1,400 Vdc
+ Frequency: DC, 16 2/3 to 800 Hz
+ Impedance: > 500 kΩ
+ Max. peak current: 3.5 mA RMS
+ Polarity indication: Yes
+ Redundant hazardous-voltage indication: The ELV (Extra-Low Voltage) LED indicates that the voltage is higher than the SELV (Safety Extra-Low Voltage) with the rate at which it flashes proportional to the voltage level
+ Stray voltage detection: Yes (by low-impedance load switching)
- RCD tripping: Yes (by low-impedance load switching)(approx. 30 mA at 230 V)
- Phase/Neutral identification: Above 50 V (45 - 65 Hz); Above 150 V (16 2/3 - 45 Hz)
- Continuity & Resistance
+ Buzzer trigger threshold: 100 Ω typical (150 Ω max.)
+ Extended continuity test (resistance): 2 kΩ, 60 kΩ, 300 kΩ
+ Test current / Open-circuit voltage : ≤ 1 mA / ≤ 3.3 V
- Phase rotation: 2-wire method with microprocessor
+ Ph/Ph voltage: 50 V ≤ U ≤ 1,000 Vac (45 - 400 Hz)
+ Buzzer: Intermittent beep for Voltage Detection ; Continuous beep for continuity
+ Standards and electrical safety: IEC 61243-3:2009, EN 61243-3:2010, IEC 61010 1,000 V CAT IV
+ Enclosure protection: IP65
+ Climatic conditions: -30 °C to +60 °C (Class S)
+ Battery life: > 5,000 x 10 s measurements
+ Dimensions / weight: 228 x 60 x 39 mm (without test probes) / 350 g approx
Delivered with 1 operating manual in 5 languages, 2 x 1.5 V LR06/AA batteries, 1 set of IP2X removable test probes Ø 4 mm, 1 Velcro strap.
Accessories & replacement parts
CAT IV test probes for VATs P01102123Z
Test probes Ø 2 mm for VATs P01102124Z
Test probes Ø 4 mm for VATs P01102125Z
Probe-tip protection for VATs P01102126Z
CAT IV IP2X probes for VATs P01102127Z
IP2X Ø 4 mm probes for VATs P01102128Z
MultiFix bag, 120 x 320 x 60 mm P01298076
C.A 753 measurement adapter P01191748Z
for European 2P+E sockets
