- DC voltage : 8 ranges: 100 mV /.. / 1,000 V
- AC voltage : 5 ranges: 10 V /.. / 1,000 V
- Internal resistance : 20 kΩ/V
- Working frequency : 10 Hz ...100 kHz depending on range
- DC current : 7 ranges: 50 μA /.. / 15 A
- AC current : 5 ranges: 1.5 mA /.. / 15 A
- Resistance: 2 ranges: 10 kΩ and 1 MΩ
- Audible continuity test: R < 50 Ω
- Scale in dB for V AC: 0 ... +22 dB
- Typical accuracy : 1.5 % on V . 2.5 % on V~and A . 10 % on Ω
- Power supply: 9 V battery
- Battery life: 10,000 measurements of 10 s
- Electrical safety : IEC / EN 61010-1 Edition 2 • 600 V Cat III-2
- Protection : HRC fuses: 1.6 A and 16 A
- Degree of watertightness: IP 53
- Environmental conditions: -10 °C ... +55 °C and RH < 90 %
- Dimensions / Weight: 160 x 105 x 56 mm / 500 g
State of delivery: IEC 1010 safety leads with test probes, battery and user manual.
Accessories:
- Shoulder bag (240 x 230 x 70 mm) P01298033
- Carrying holster (220 x 180 x 75 mm) P01298036
- Carrying case (270 x 200 x 65 mm) with precut foam insert:
+ for the C.A 5001 or C.A 5003 P01298037
+ for the C.A 5005 and MN 89 P01298037A

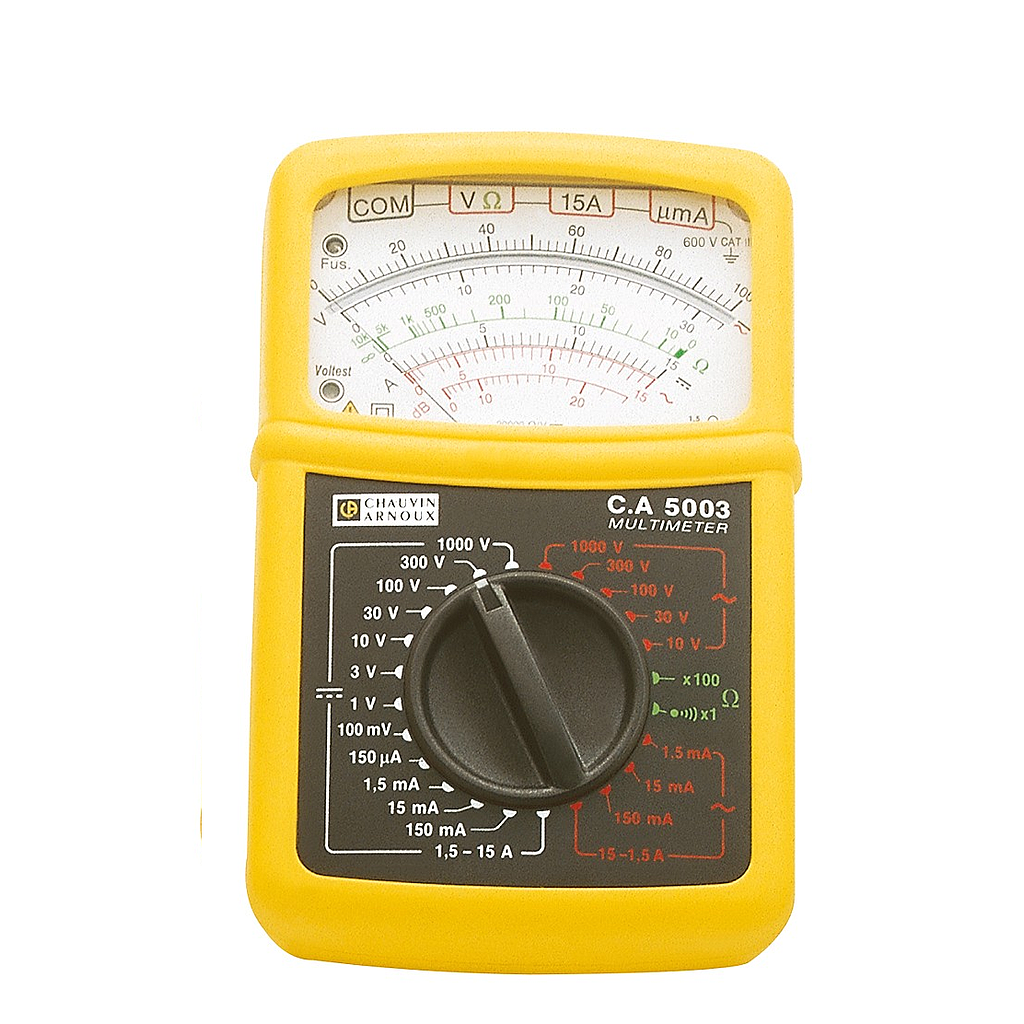

The C.A 5003 is a very competitively-priced analogue multimeter designed to meet all the needs of electricians.
Specifications:
