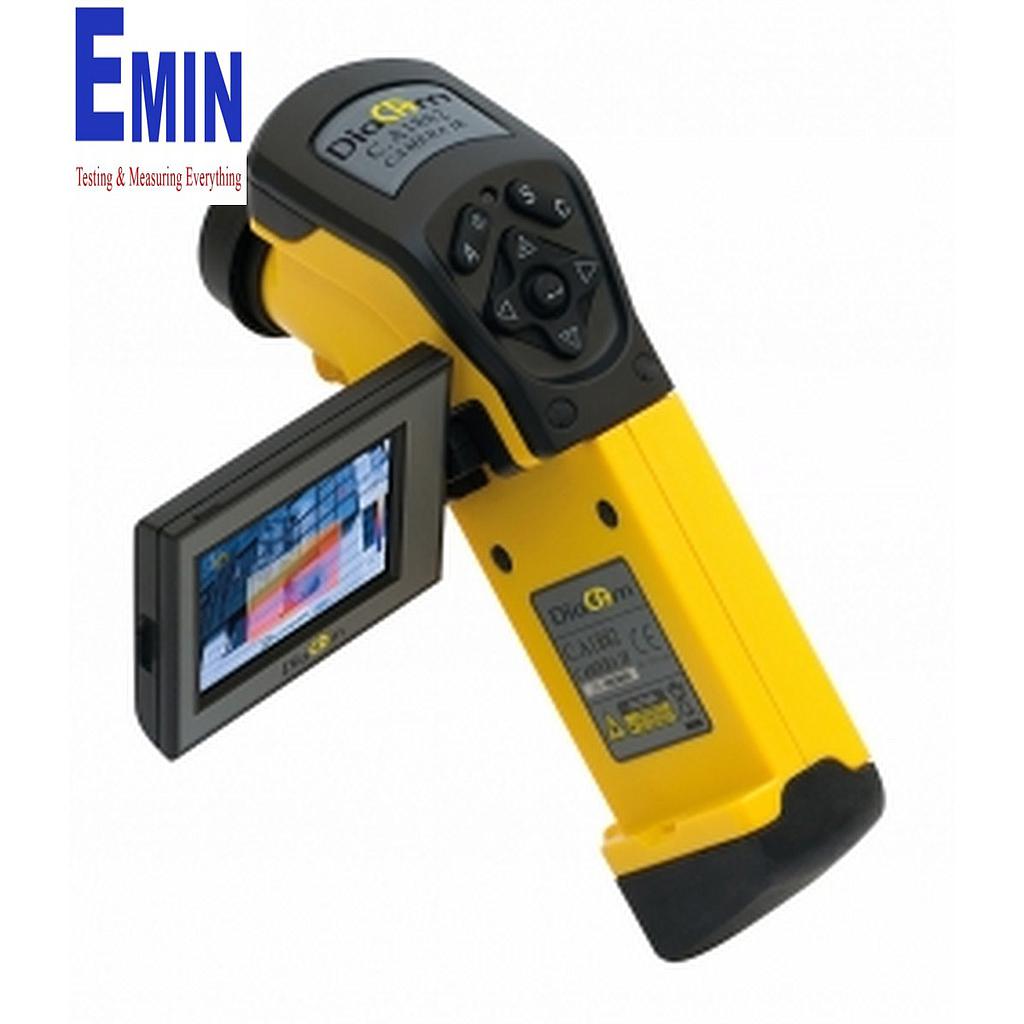

Manuafacturer: Chauvin Arnoux
Model : C.A 1882
Item: P01651215
Warranty : 12 month
Detector specifications
- Detector: 160 x 120
- Type: UFPA microbolometer, 8-14 μm
- Frequency: 50 Hz*
- Sensitivity (N.E.T.D): 0.08 °C @ 30 °C
Temperature measurement
- Temperature range: -20 °C to +250 °C
- Accuracy: ±2 °C or ±2 % of reading
Image performance
- Thermal image
+ Field of view: 10° x 8°; 12° x 10°; 38° x 28°
+ Spatial resolution: 2.2 mrad; 4.4 mrad
+ Min. focal distance: 10 cm
+ Focusing: Manual
- Real image: Yes
+ "MixVision" mode: Merge function with adjustment from 0 to 100 % of the level of the thermal image overlay in the real image
+ Image size : 640 x 480 pixels
Functions
- Emissivity correction: Yes
- Parameter settings: Emissivity, environmental temperature, distance, relative humidity
- Measurement tools: 1 manual cursor + automatic Min/Max detection on adjustable area
- Laser pointer: Yes
- Memory: 1,000 thermal images as standard
- Type of storage: Removable 2 GB SD card (as standard), up to 16 GB
- Screen: 3 inches, multi-directional
General specifications
- Battery: Lithium-Ion rechargeable battery / Battery life: 3 hours
- Battery recharging : Recharging via external charger
- Protection: IP54
State of delivery: delivered in plain cardboard box with battery charger, docking station, battery, 2 GB mini-SD card, SD card reader , video cable, RayCam Report software on CD-ROM, operating manuals and measurement reports.
Accessories
-Battery P01296045
-Battery charger P01296046
-Bag P01298075
-Docking station P01651528
-Mains power supply P01651527
-Sun-shade P01651532
-In-vehicle charger adapter HX0061
-C.A 1875 training bench P01651620
